REMOTE KEYLESS ENTRY FUNCTION : Component Parts Location

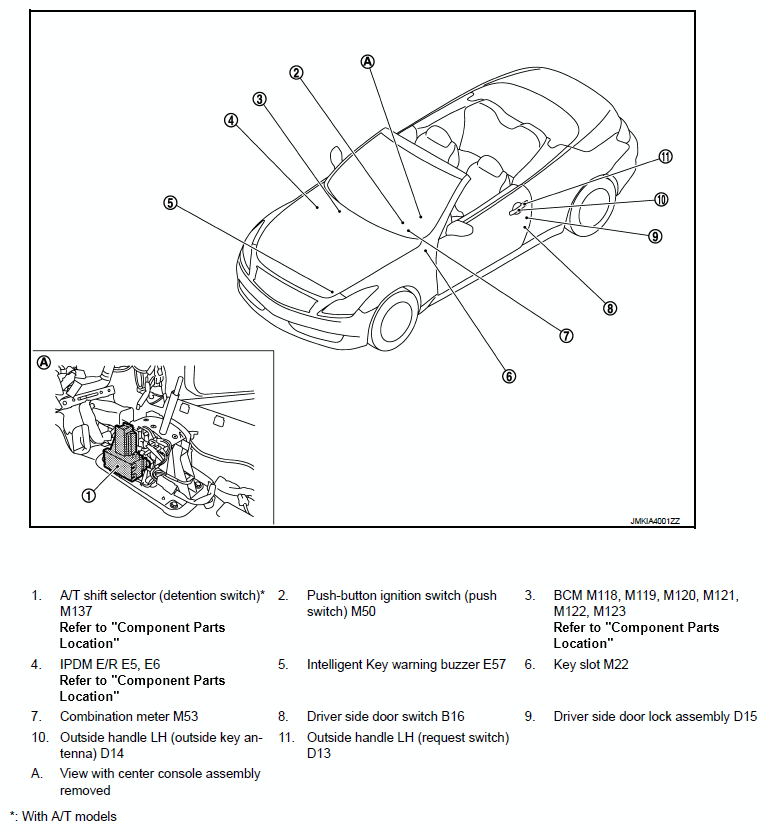

Fig 1: Identifying Remote Keyless Entry Function Component Parts Location (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

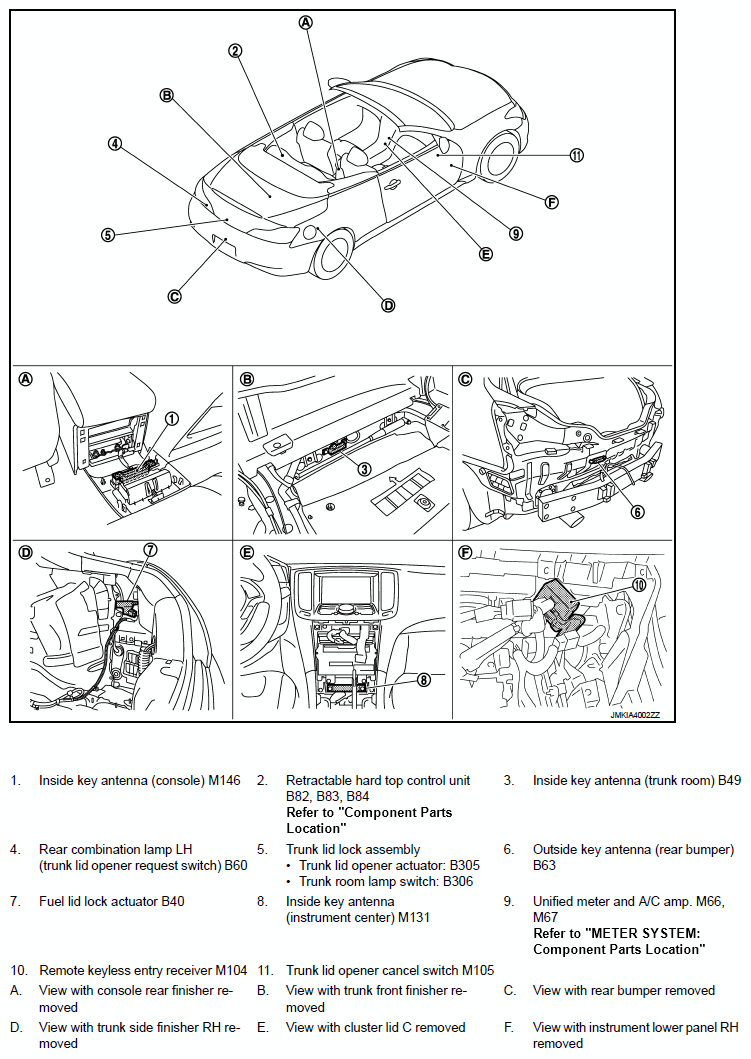

Fig 2: Identifying Remote Keyless Entry Function Component Parts Location (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
