Disassembly View

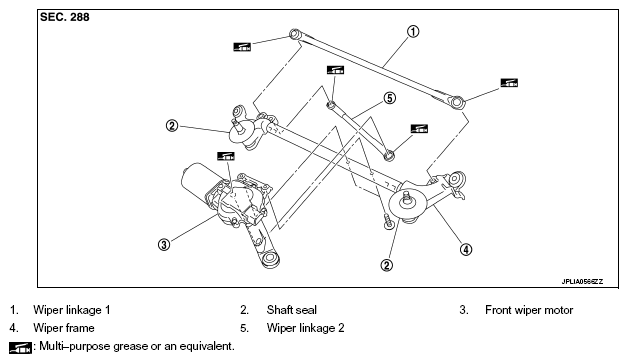

Fig 1: Exploded View Of Front Wiper Drive Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
