Home
>>
Infiniti
>>
2009
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper & Washer -- Convertible
>>
System Description
>>
Front Wiper And Washer System
>>
With Rain Sensor
>>
WITH RAIN SENSOR : System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
WITH RAIN SENSOR : System Diagram

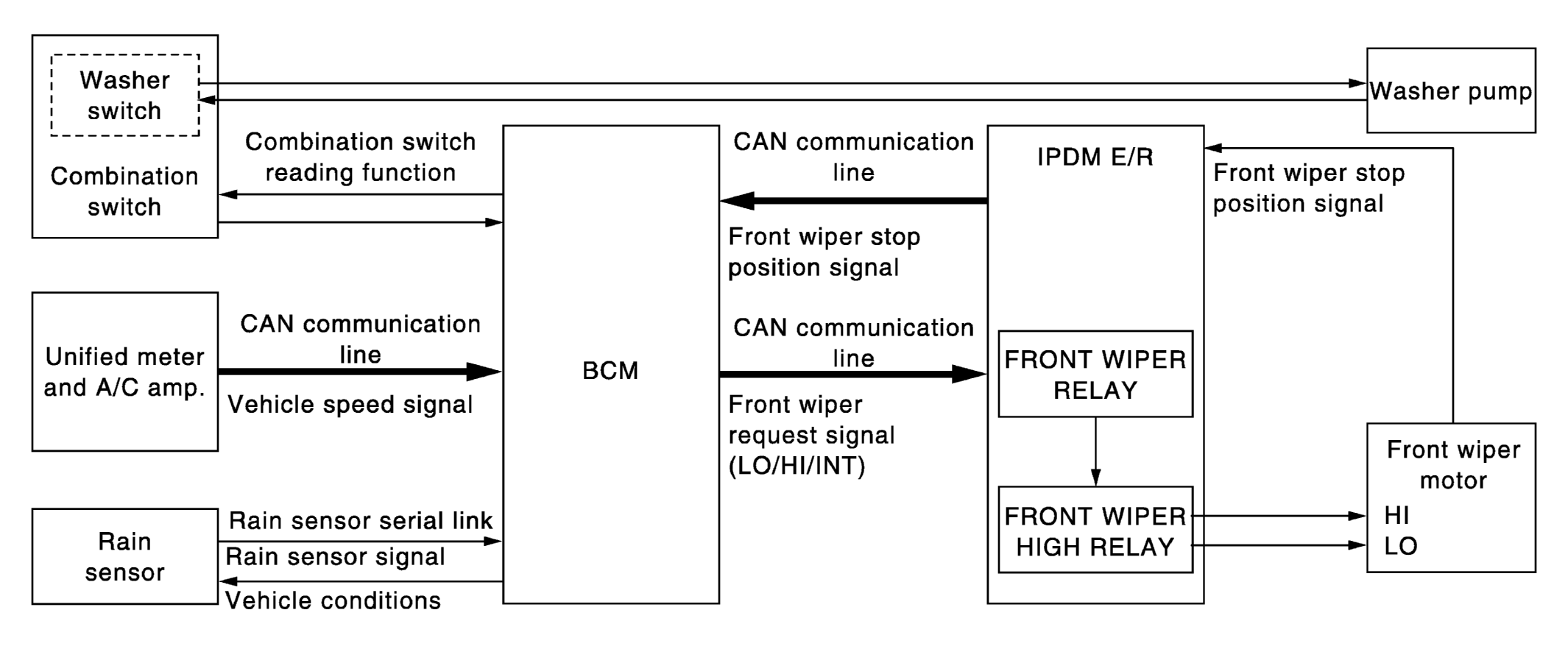

Fig 1: Rain Sensor - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
