MANUAL FUNCTION : Component Parts Location

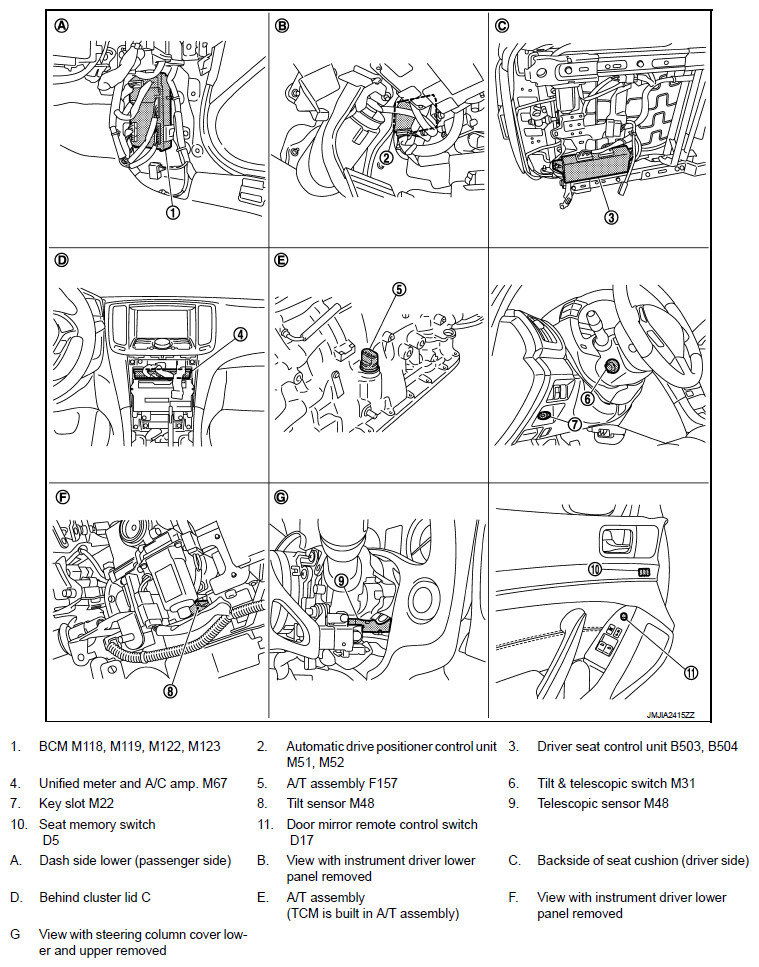

Fig 1: Manual Function System Parts Location (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

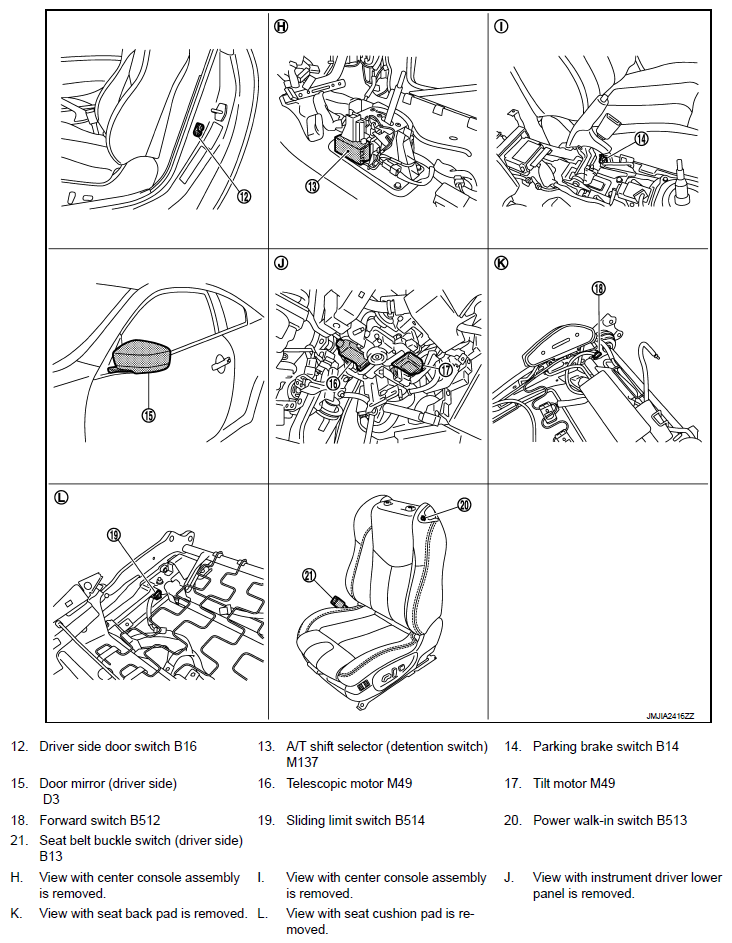

Fig 2: Manual Function System Parts Location (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

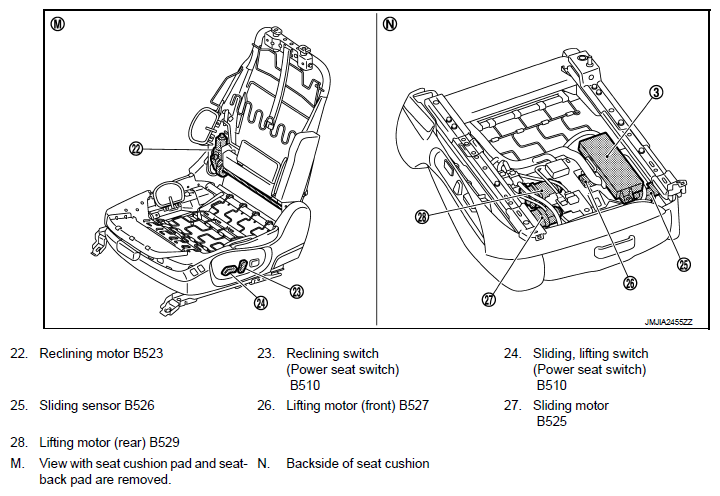

Fig 3: Manual Function System Parts Location (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
