POWER WALK-IN FUNCTION : Component Parts Location

Fig 1: Power Walk-In Function Parts Location (1 Of 3)
G05970117Courtesy of NISSAN MOTOR CO., U.S.A.

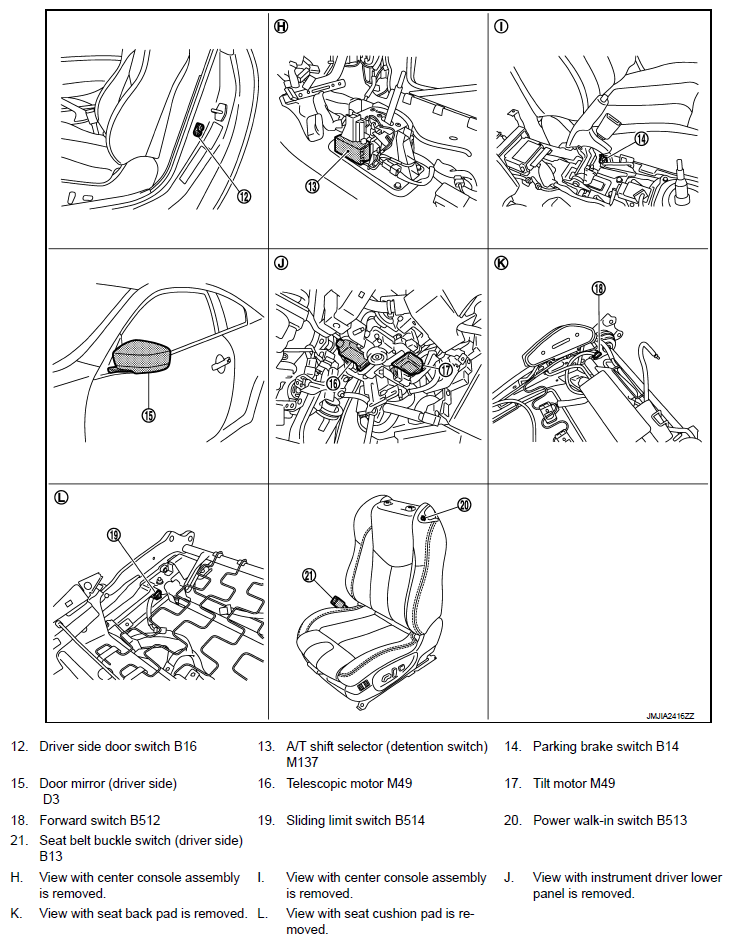

Fig 2: Power Walk-In Function Parts Location (2 Of 3)
G05970118Courtesy of NISSAN MOTOR CO., U.S.A.

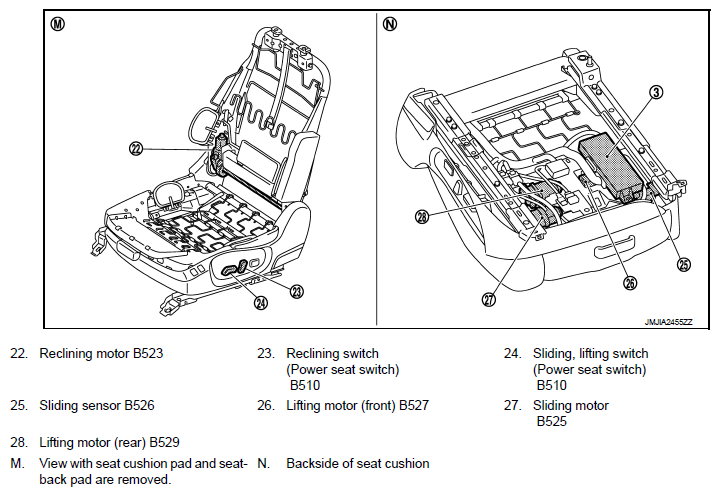

Fig 3: Power Walk-In Function Parts Location (3 Of 3)
G05970119Courtesy of NISSAN MOTOR CO., U.S.A.
