A/T : Assembly

  1. Install circular clip to side gear.
    CAUTION: Never damage side gear.
  2. Install side gear thrust washers with the same thickness as the ones installed prior to disassembly or reinstall the old ones on the side gears.
    Fig 1: Assembling Side Gear Thrust Washers
    G04876378Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install side gears and thrust washers into differential case.
    CAUTION:
    • Make sure that the circular clip is installed to side gears.
    • Never reuse circular clip.
  4. Align 2 pinion mate gears in diagonally opposite positions, then rotate and install them into differential case after installing thrust washer to pinion mate gear.
    Fig 2: Installing Side Gears And Thrust Washers Into Differential Case
    G04876379Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Align the lock pin holes on differential case with shaft, and install pinion mate shaft.
    Fig 3: Installing Pinion Mate Shaft
    G04876380Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Measure side gear end play. If necessary, select the appropriate side gear thrust washers.
    1. Place differential case straight up so that side gear to be measured comes upward.
      Fig 4: Measuring Side Gear End Play
      G05729145Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Using feeler gauge, measure the clearance between side gear back and differential case at 3 different points, while rotating side gear. Average the 3 readings, and then measure the clearance of the other side as well.

      Standard

      Side gear back clearance :  Refer to "DIFFERENTIAL SIDE GEAR CLEARANCE ".

      CAUTION: To prevent side gear from tilting, insert feeler gauges with the same thickness from both sides.
    3. If the back clearance is outside the specification, use a thicker/thinner side gear thrust washer to adjust.

      When the back clearance is large: Use a thicker thrust washer.

      When the back clearance is small: Use a thinner thrust washer.

      Fig 5: Measuring Clearance Between Side Gear Back And Differential Case
      G04876353Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Select a side gear thrust washer for right and left individually.
  7. Drive a lock pin into pinion mate shaft, using a punch.

    Make sure lock pin is flush with differential case.

    CAUTION: Never reuse lock pin.
    Fig 6: Driving Lock Pin Into Pinion Mate Shaft
    G04876381Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Apply thread locking sealant into the thread hole of drive gear.

    Use Genuine High Strength Thread Locking Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

    CAUTION: Clean and degrease drive gear back and threaded holes sufficiently.
    Fig 7: Applying Thread Locking Sealant Into Thread Hole Of Drive Gear
    G04876383Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install drive gear on the mounting bolts.
    CAUTION:
    • Align the matching marks of differential case and drive gear.
    • Tighten bolts in a crisscross fashion.
    • After tightening the bolts to the specified torque, tighten the bolts additionally by turning the bolts 31 to 36 degrees.
    Fig 8: Identifying Drive Gear Bolts
    G04876384Courtesy of NISSAN MOTOR CO., U.S.A.

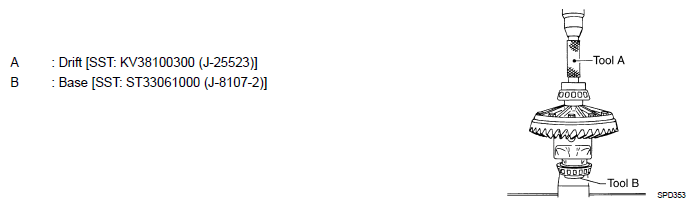

  10. Press side bearing inner races to differential case, using the drift and the base.
    Fig 9: Pressing Side Bearing Inner Races To Differential Case
    G05973481Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never reuse side bearing inner race.
  11. Install differential case assembly with side bearing outer races into gear carrier.
  12. Measure side bearing preload. If necessary, select the appropriate side bearing adjusting washers. Refer to "A/T : ADJUSTMENT ".
    Fig 10: Identifying Correct Bearing Races
    G04876340Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Insert selected left and right side bearing adjusting washers in place between side bearings and gear carrier. Refer to "A/T : ADJUSTMENT ".
    Fig 11: Inserting Side Bearing Adjusting Washers Between Side Bearings And Gear Carrier
    G04876355Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Align matching marks on bearing cap with that on gear carrier.
  15. Install bearing caps and tighten bearing cap mounting bolts.
    Fig 12: Aligning Matching Mark On Gear Carrier
    G04876337Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Using the drift [SST: KV38100200 (J-26233)], drive side oil seals until it becomes flush with the case end.
    CAUTION:
    • Never reuse oil seal.
    • When installing, never incline oil seal.
    • Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of oil seal.
  17. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash, and total preload torque. Refer to "A/T : ADJUSTMENT ".
    Fig 13: Installing Side Oil Seal
    G04876389Courtesy of NISSAN MOTOR CO., U.S.A.

    Recheck above items. Readjust the above description, if necessary.

  18. Apply sealant to mating surface of rear cover.

    Use Genuine Silicone RTV or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

    CAUTION: Remove old sealant adhering to mounting surfaces. Also remove any moisture, oil, or foreign material adhering to application and mounting surfaces.
  19. Install rear cover on gear carrier and tighten mounting bolts.
    Fig 14: Applying Sealant To Mating Surface Of Rear Cover
    G04876390Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install side flange with the following procedure.
    1. Attach the protector [SST: KV38107900 (J-39352)] to side oil seal.
    2. After the side flanges is inserted and the serrated part of side gear has engaged the serrated part of flange, remove the protector.
      Fig 15: Attaching Special Tool To Side Oil Seal
      G04876299Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Put a suitable drift on the center of side flange, then drive it until sound changes.
      NOTE: When installation is completed, driving sound of the side flange turns into a sound that seems to affect the whole final drive.
    4. Confirm that the dimension of the side flanges (1) installation measurement (A) in the figure comes into the following.

      Standard

      A : 326 - 328 mm (12.83 - 12.91 in)

      Fig 16: Identifying Dimension Of Side Flange
      G05219277Courtesy of NISSAN MOTOR CO., U.S.A.
