A/T : Exploded View

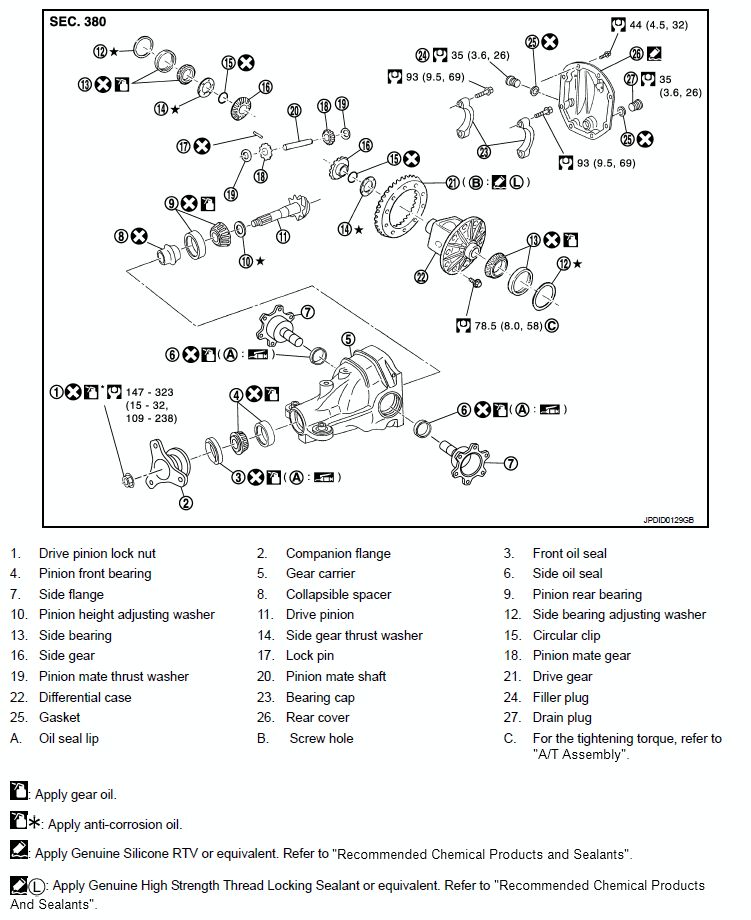

Fig 1: Differential Assembly - A/T With Torque Specifications
G05973461Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
