Exploded View

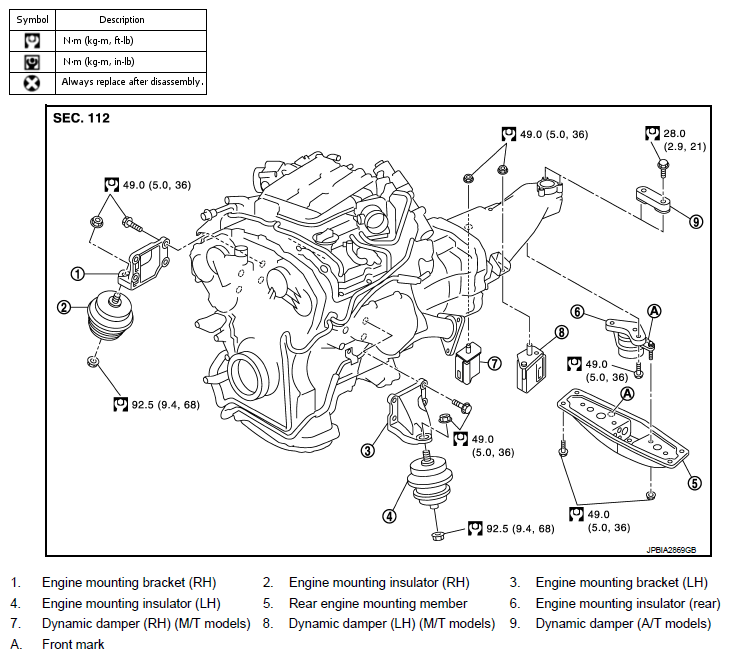

Fig 1: Exploded View Of Engine Mounts & Transmission Mounts With Torque Specifications
G05972206Courtesy of NISSAN MOTOR CO., U.S.A.
