Overall Sequence

Fig 1: Work Flow Chart (1 Of 2)
G05881567Courtesy of NISSAN MOTOR CO., U.S.A.

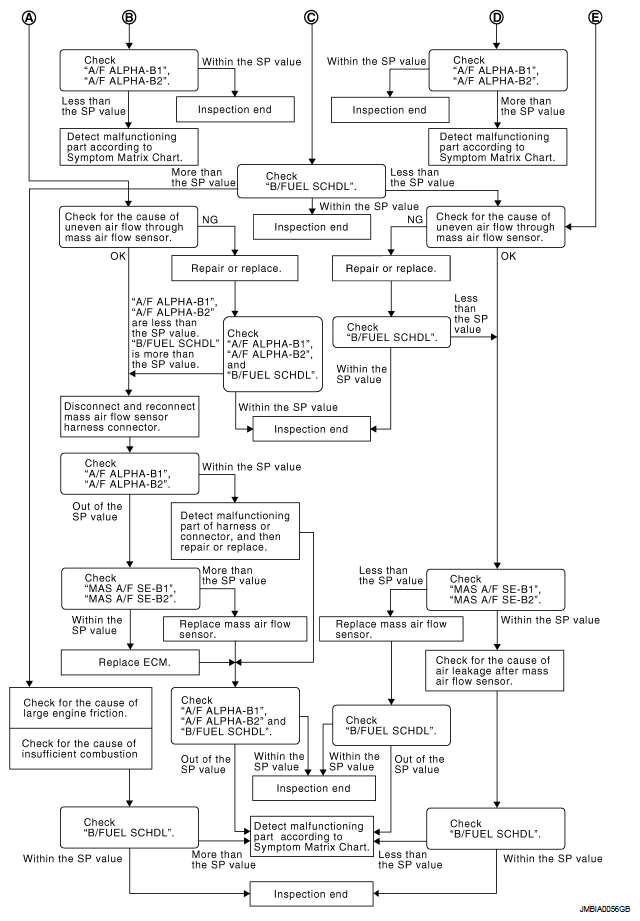

Fig 2: Work Flow Chart (2 Of 2)
G05972673Courtesy of NISSAN MOTOR CO., U.S.A.
