Power Socket (With M/T) Connector End View (M152)

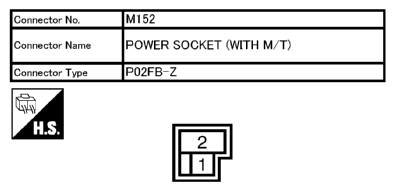

Fig 1: Power Socket (With M/T) Connector End View (M152)
G10636460Courtesy of NISSAN NORTH AMERICA, INC.
