Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM -

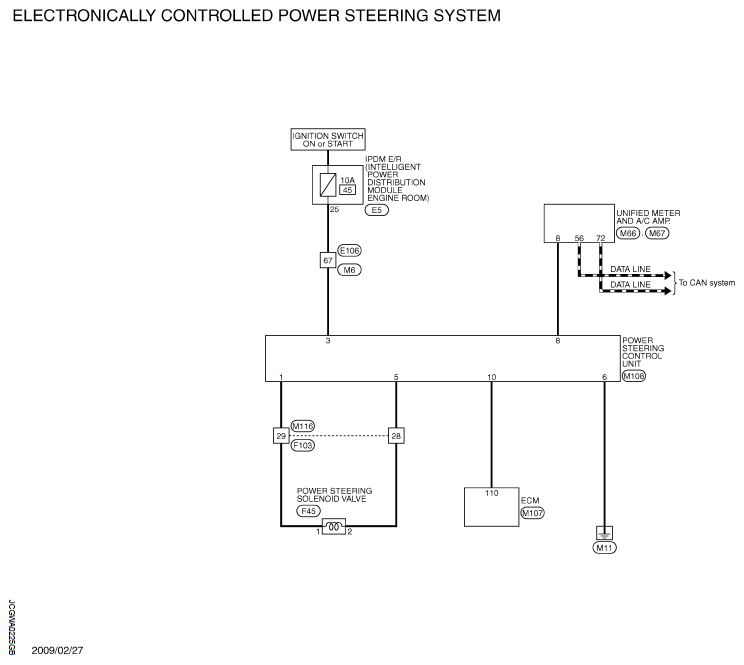

Fig 1: Electronically Controlled Power Steering System - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

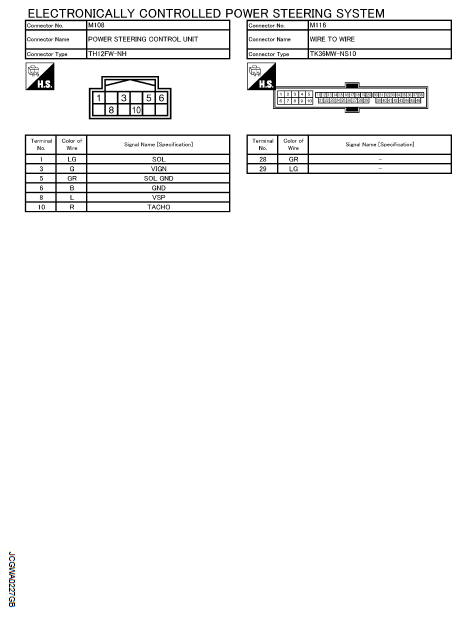

Fig 2: Electronically Controlled Power Steering System Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

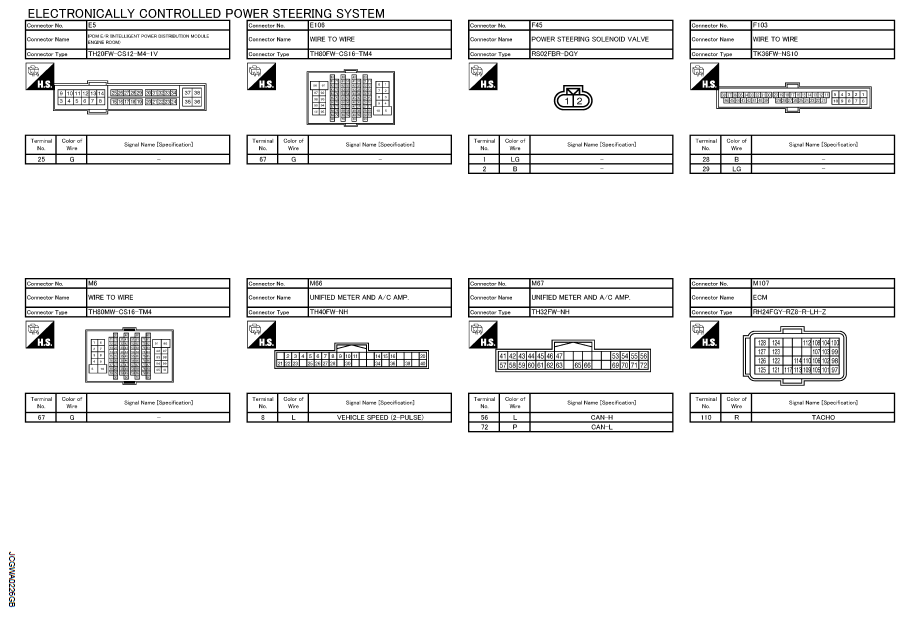

Fig 3: Electronically Controlled Power Steering System Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
