Exploded View

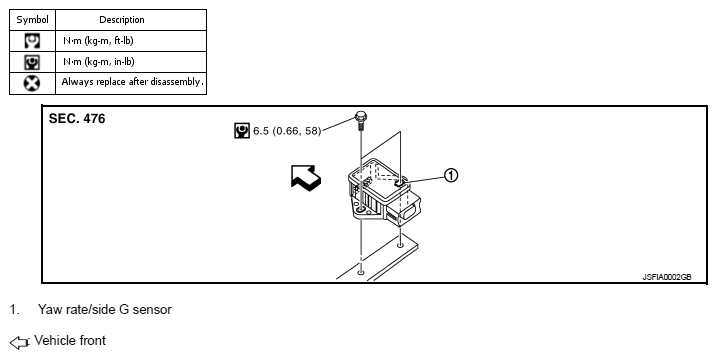

Fig 1: Yaw Rate/Side G Sensor With Torque Specifications
G05973629Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
