Infiniti
>>
2009
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Distribution System -- Convertible
>>
System Description
>>
Power Distribution System
>>
Component Parts Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Parts Location

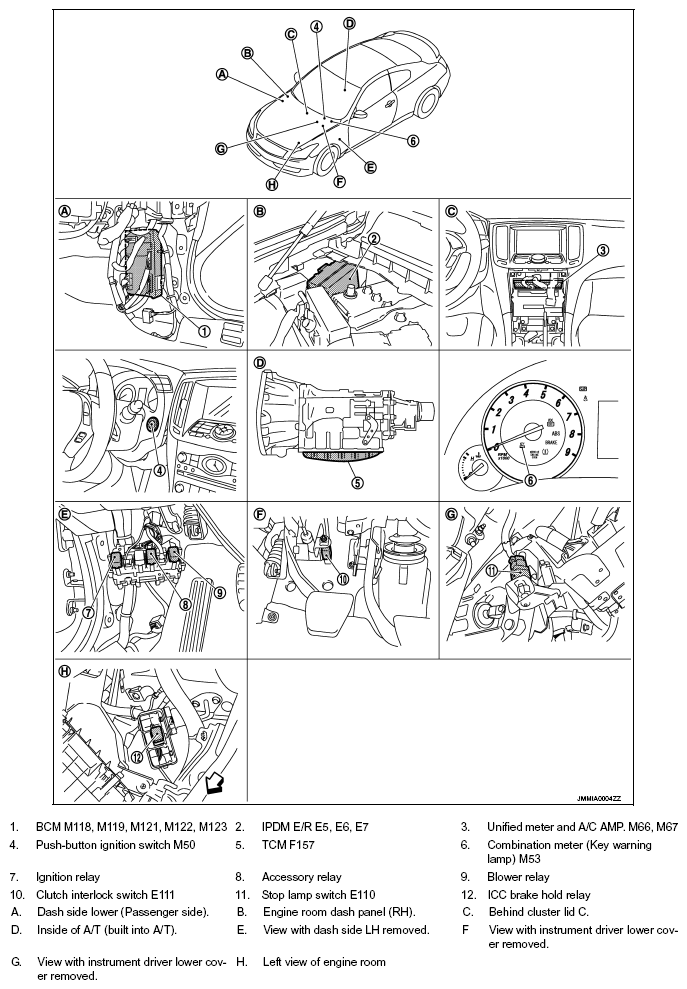

Fig 1: Identifying Power Distribution System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
