Exploded View: Disassembly

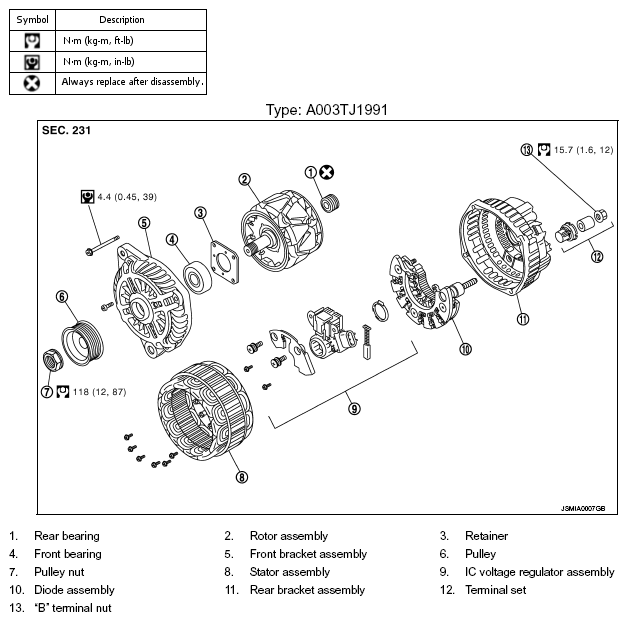

Fig 1: Exploded View Of Alternator With Torque Specifications
G05971765Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
