Exploded View

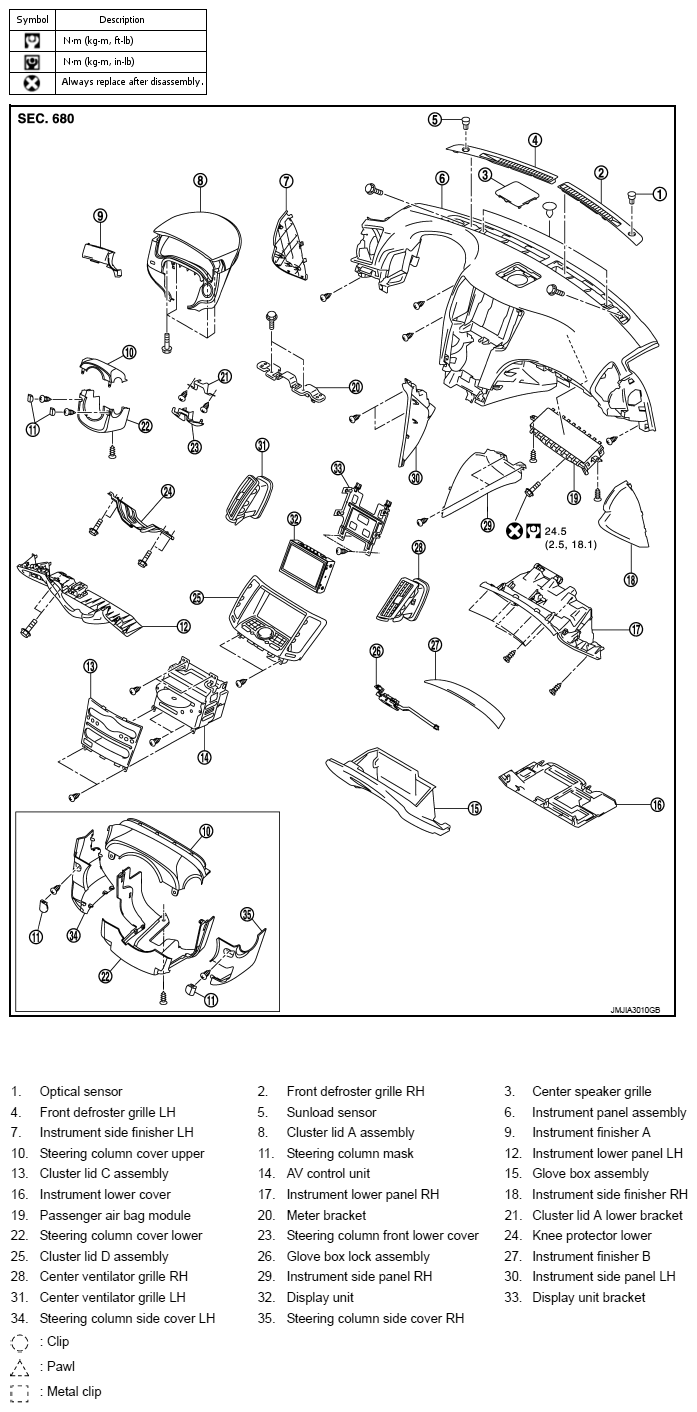

Fig 1: Exploded View Of Instrument Panel Assembly Components With Torque Specifications
G05974082Courtesy of NISSAN MOTOR CO., U.S.A.
