Exploded View: Disassembly

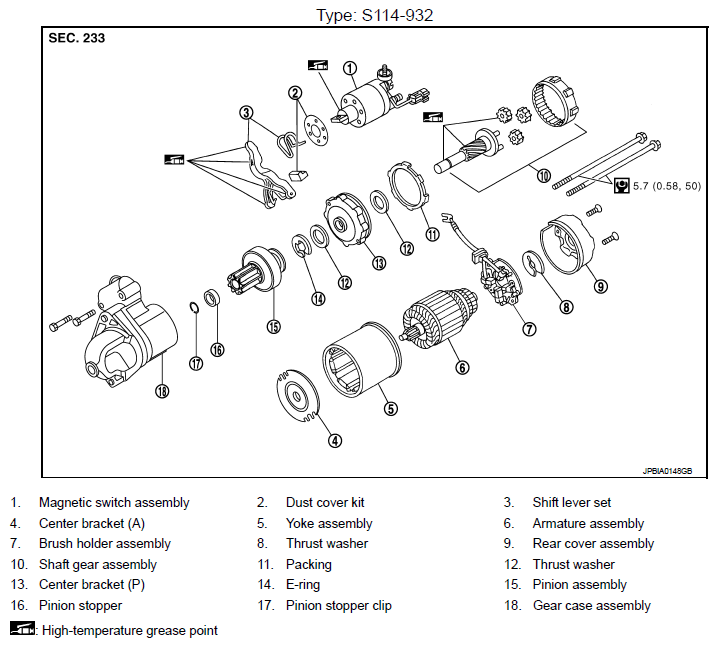

Fig 1: Exploded View Of Starter Motor Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols not described on the above.
