Component Parts Location

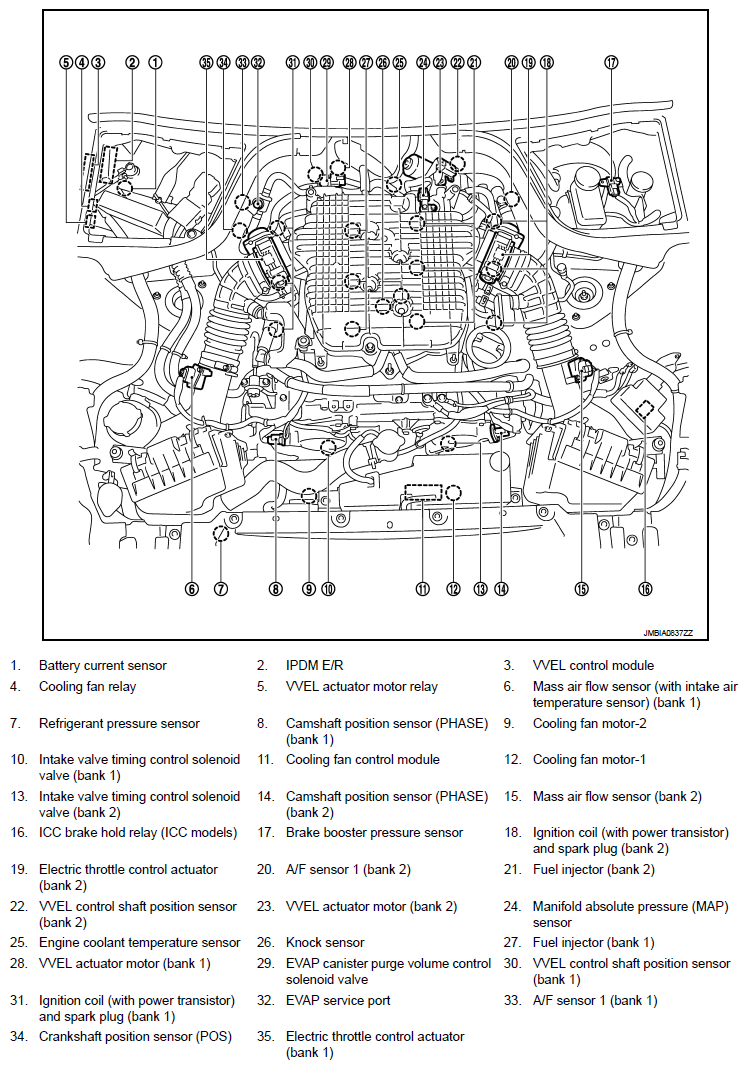

Fig 1: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (1 Of 21)

G05972541

Courtesy of NISSAN MOTOR CO., U.S.A.

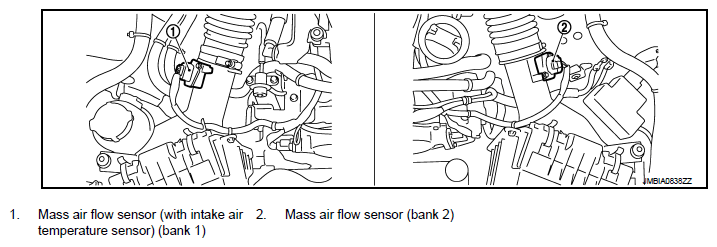

Fig 2: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (2 Of 21)

G05972542

Courtesy of NISSAN MOTOR CO., U.S.A.

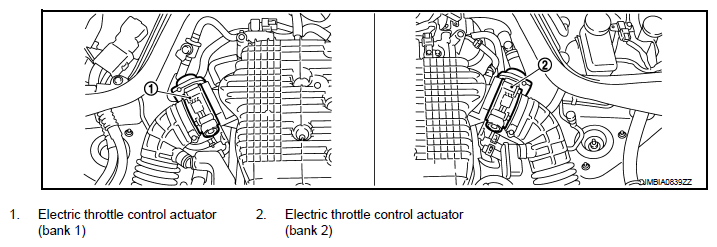

Fig 3: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (3 Of 21)

G05972543

Courtesy of NISSAN MOTOR CO., U.S.A.

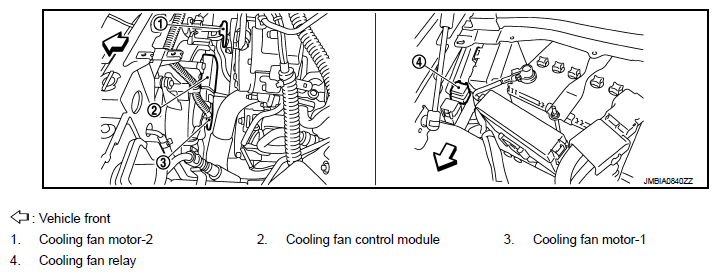

Fig 4: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (4 Of 21)

G05972544

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

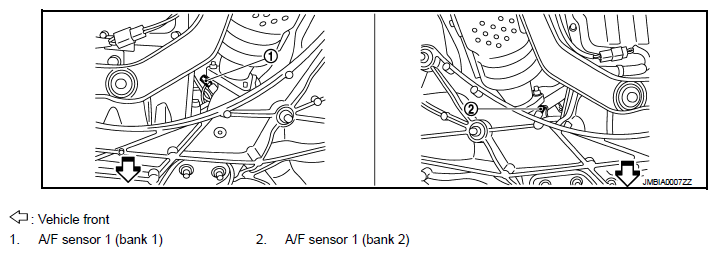

Fig 6: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (6 Of 21)

G05972546

Courtesy of NISSAN MOTOR CO., U.S.A.

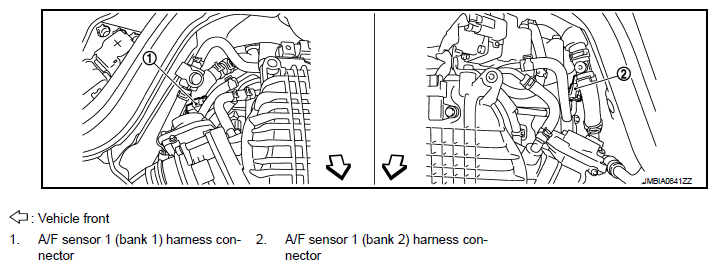

Fig 7: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (7 Of 21)

G05972547

Courtesy of NISSAN MOTOR CO., U.S.A.

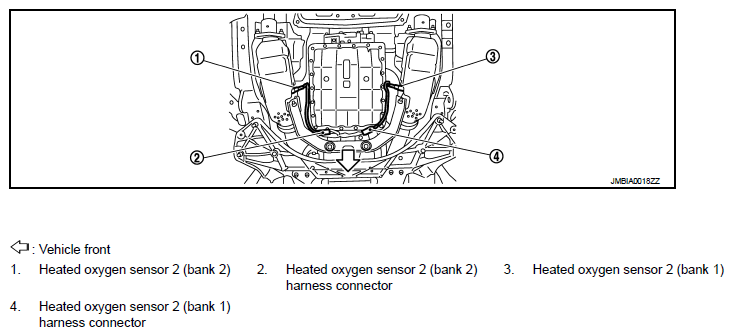

Fig 8: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (8 Of 21)

G05972548

Courtesy of NISSAN MOTOR CO., U.S.A.

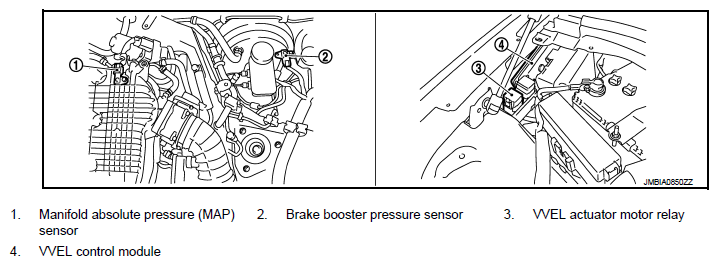

Fig 9: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (9 Of 21)

G05972549

Courtesy of NISSAN MOTOR CO., U.S.A.

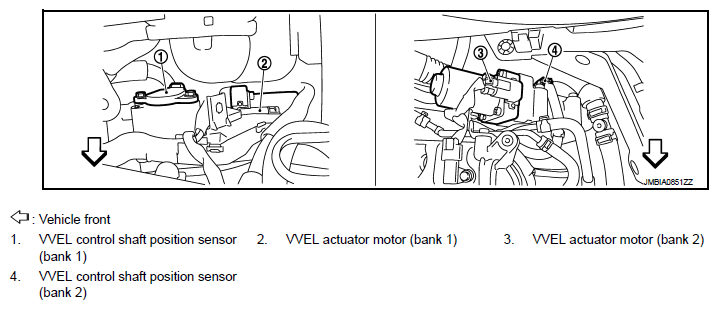

Fig 10: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (10 Of 21)

G05972550

Courtesy of NISSAN MOTOR CO., U.S.A.

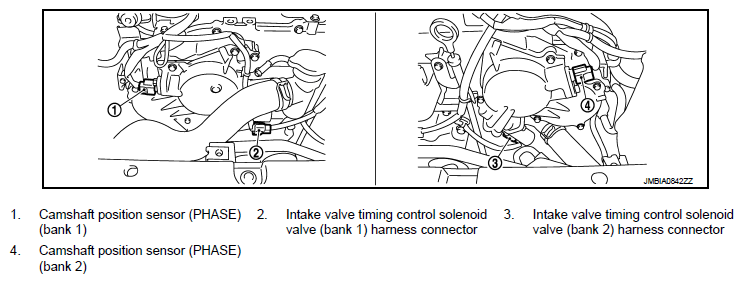

Fig 11: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (11 Of 21)

G05972551

Courtesy of NISSAN MOTOR CO., U.S.A.

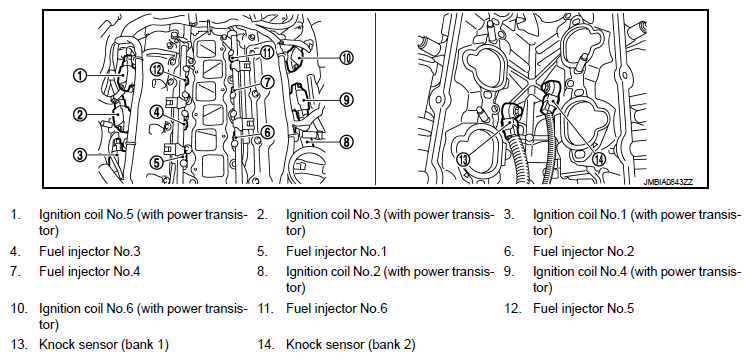

Fig 12: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (12 Of 21)

G05972552

Courtesy of NISSAN MOTOR CO., U.S.A.

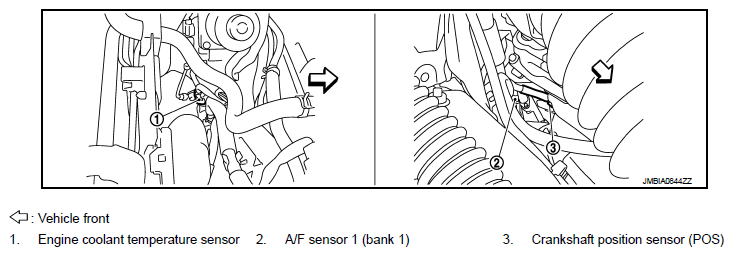

Fig 13: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (13 Of 21)

G05972553

Courtesy of NISSAN MOTOR CO., U.S.A.

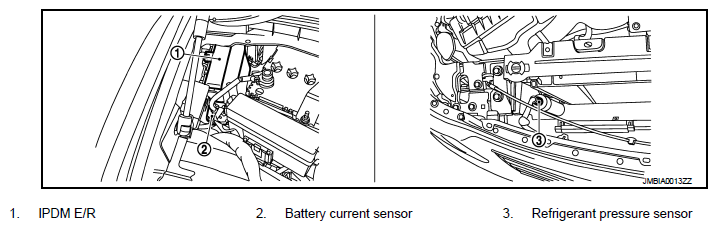

Fig 14: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (14 Of 21)

G05972554

Courtesy of NISSAN MOTOR CO., U.S.A.

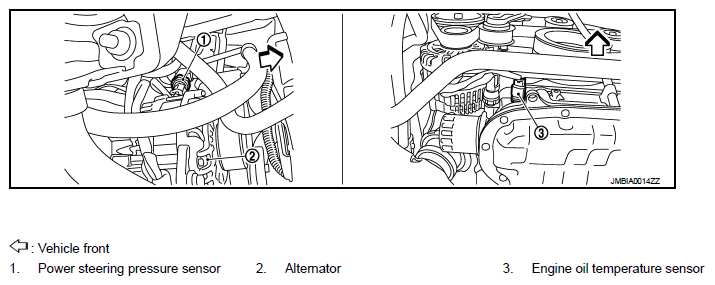

Fig 15: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (15 Of 21)

G05972555

Courtesy of NISSAN MOTOR CO., U.S.A.

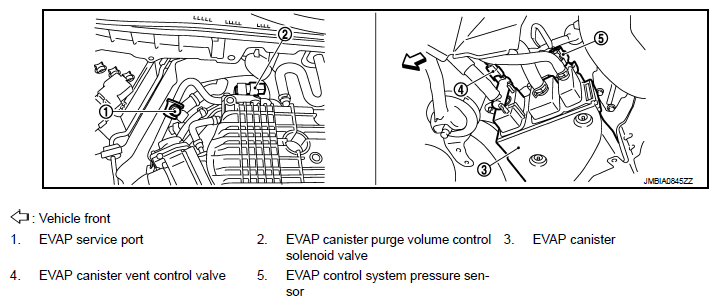

Fig 16: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (16 Of 21)

G05972556

Courtesy of NISSAN MOTOR CO., U.S.A.

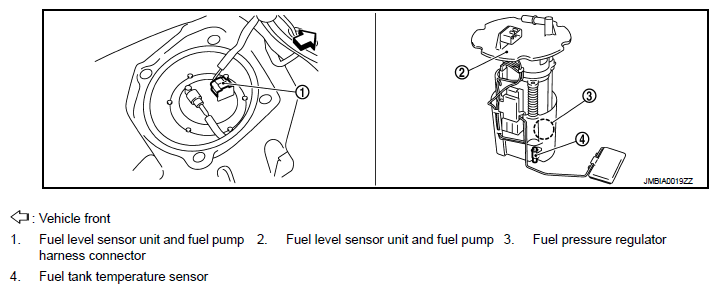

Fig 17: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (17 Of 21)

G05972557

Courtesy of NISSAN MOTOR CO., U.S.A.

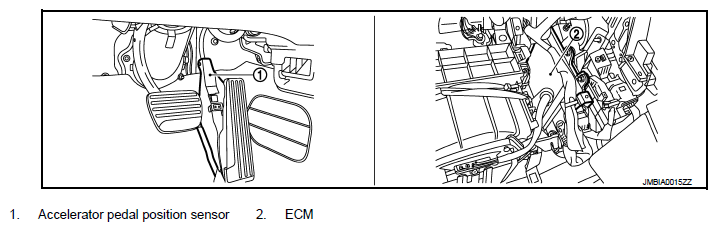

Fig 18: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (18 Of 21)

G05972558

Courtesy of NISSAN MOTOR CO., U.S.A.

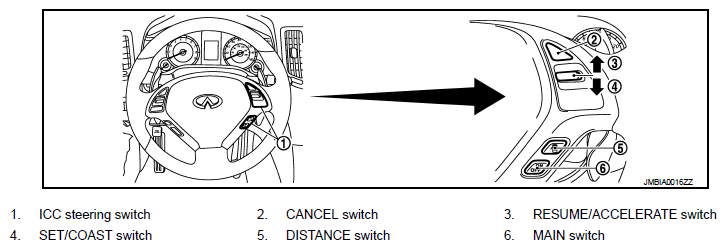

Fig 19: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (19 Of 21)

G05972559

Courtesy of NISSAN MOTOR CO., U.S.A.

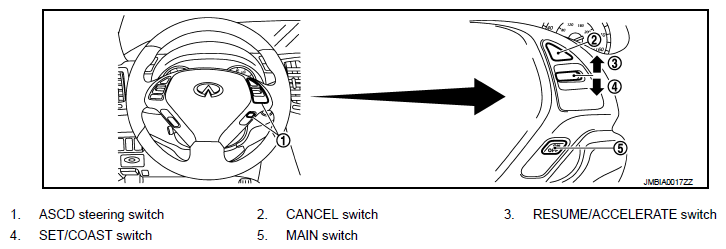

Fig 20: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (20 Of 21)

G05972560

Courtesy of NISSAN MOTOR CO., U.S.A.

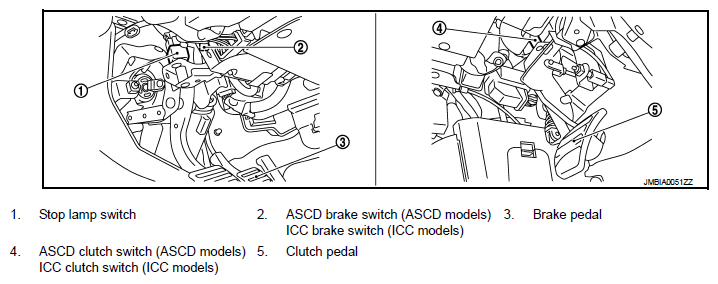

Fig 21: Identifying Automatic Speed Control Device (ASCD) Component Parts Location (21 Of 21)

G05972561

Courtesy of NISSAN MOTOR CO., U.S.A.
