Component Parts Location

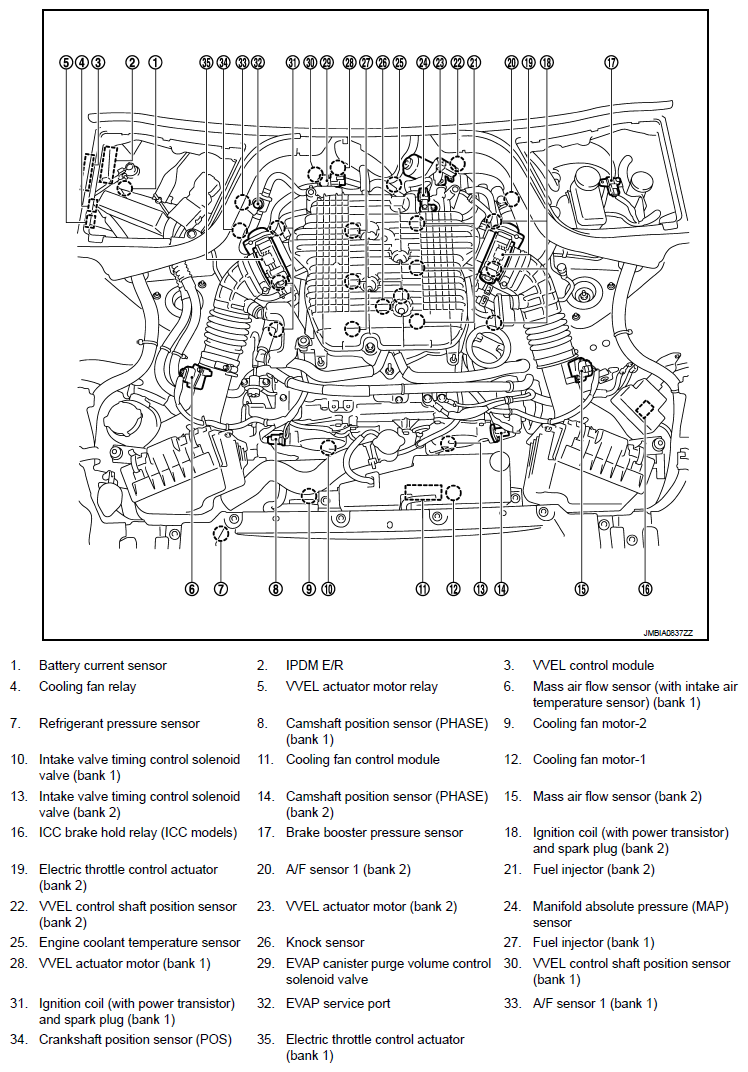

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 21)

G05972611

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 21)

G05972612

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 21)

G05972613

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 21)

G05972614

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 21)

G05972616

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 21)

G05972617

Courtesy of NISSAN MOTOR CO., U.S.A.

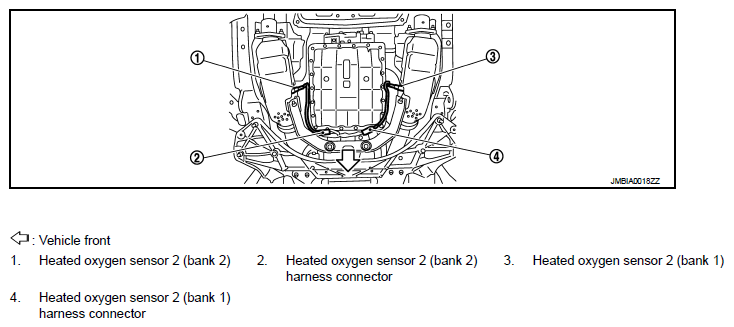

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 21)

G05972618

Courtesy of NISSAN MOTOR CO., U.S.A.

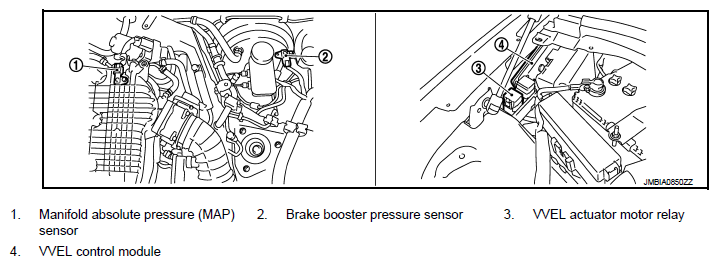

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 21)

G05972619

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 21)

G05972620

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 21)

G05972621

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 21)

G05972622

Courtesy of NISSAN MOTOR CO., U.S.A.

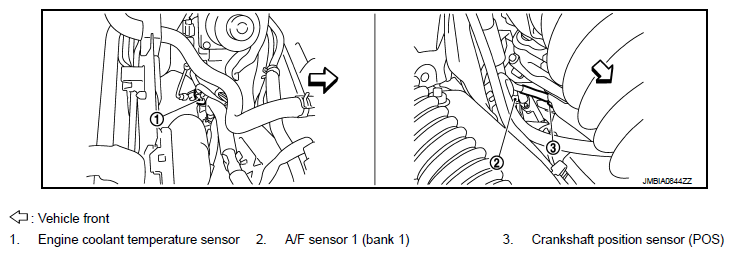

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 21)

G05972623

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 21)

G05972624

Courtesy of NISSAN MOTOR CO., U.S.A.

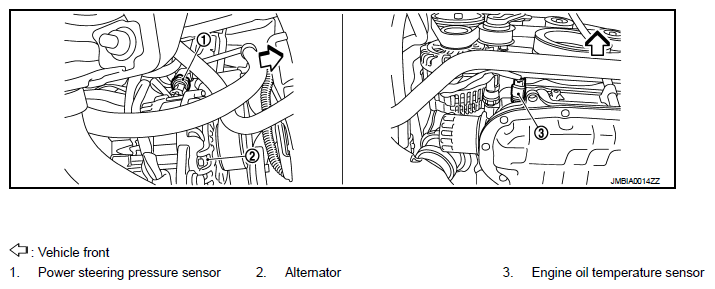

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 21)

G05972625

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 21)

G05972626

Courtesy of NISSAN MOTOR CO., U.S.A.

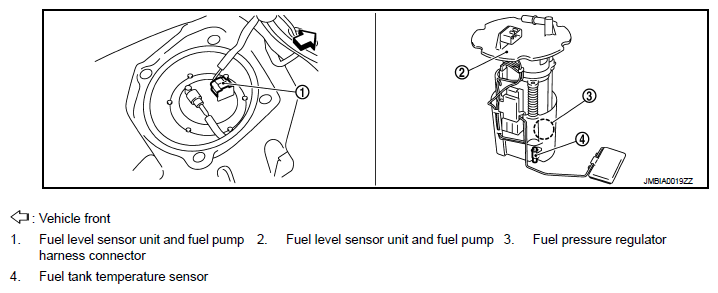

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 21)

G05972627

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 21)

G05972628

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 21)

G05972629

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 21)

G05972630

Courtesy of NISSAN MOTOR CO., U.S.A.

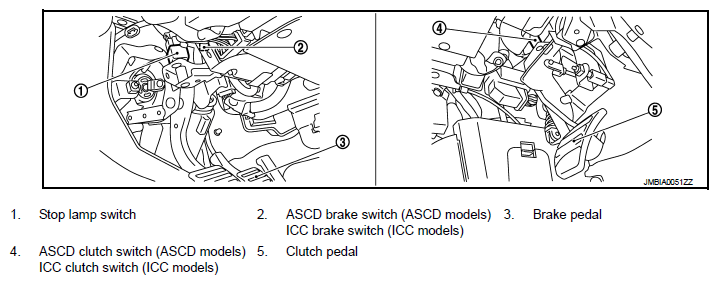

Fig 21: Identifying Intake Valve Timing Control Component Parts Location (21 Of 21)

G05972631

Courtesy of NISSAN MOTOR CO., U.S.A.
