Exploded View

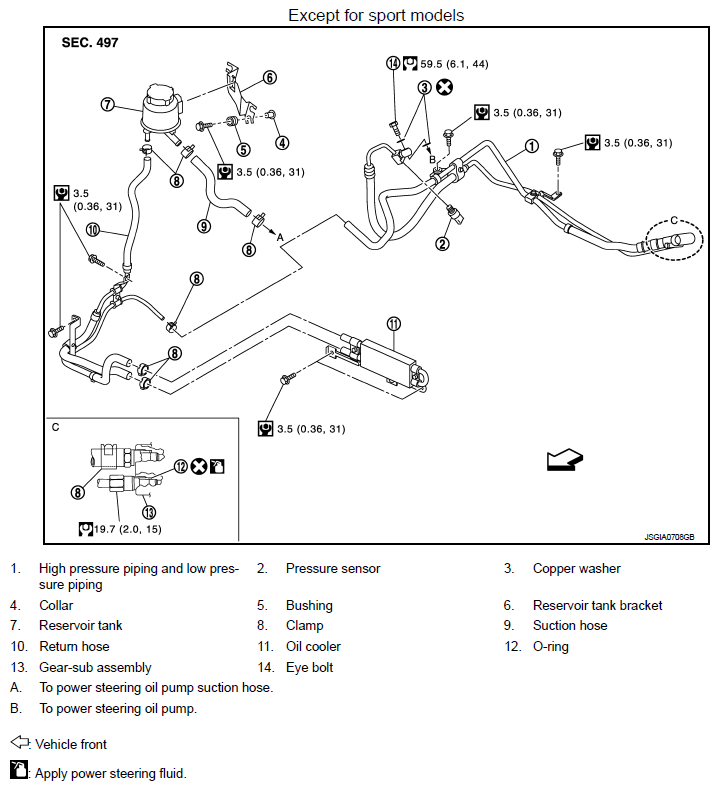

Fig 1: Exploded View Of Hydraulic Line - Except For Sport Models With Torque Specifications
G05973723Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols not described on the above.

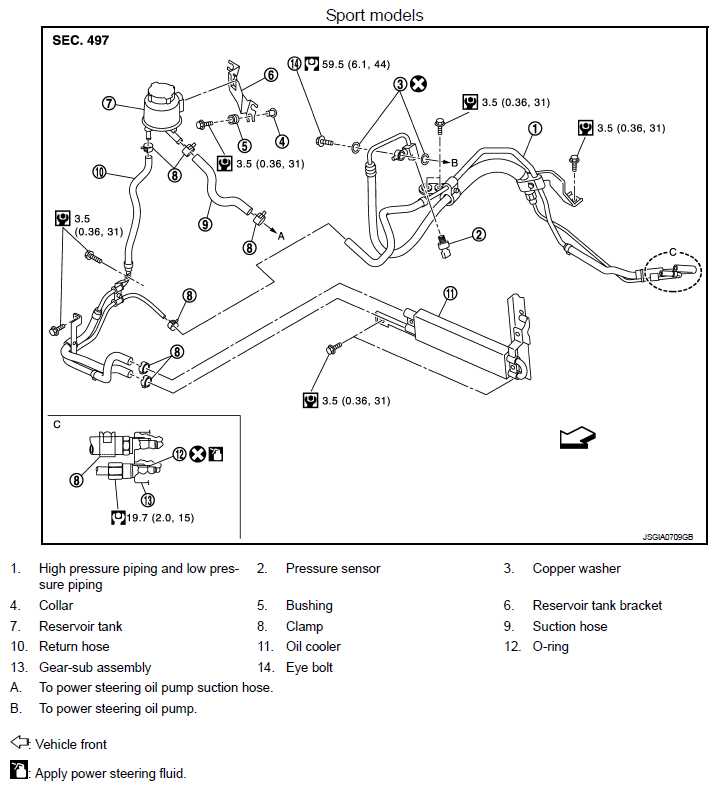

Fig 2: Exploded View Of Hydraulic Line - Sport Models With Torque Specifications
G05973724Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols not described on the above.
