WITH ELECTRIC MOTOR : Exploded View

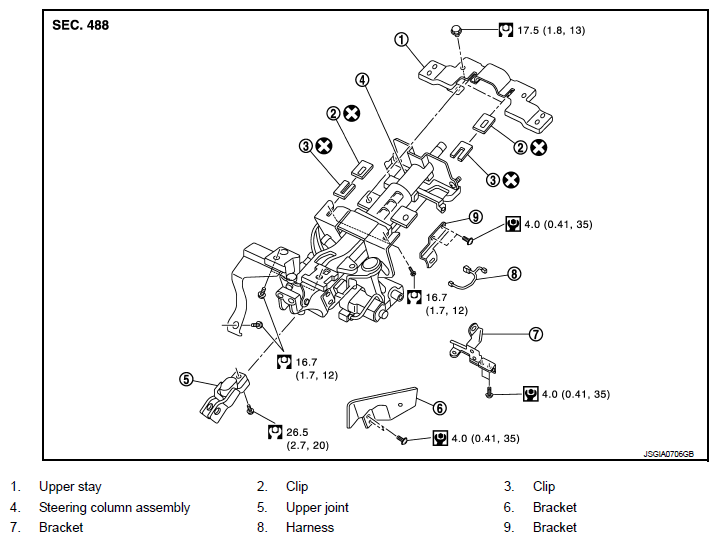

Fig 1: Exploded View Of Steering Column With Electric Motor And Torque Specifications
G05973660Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
