WITHOUT ELECTRIC MOTOR : Exploded View

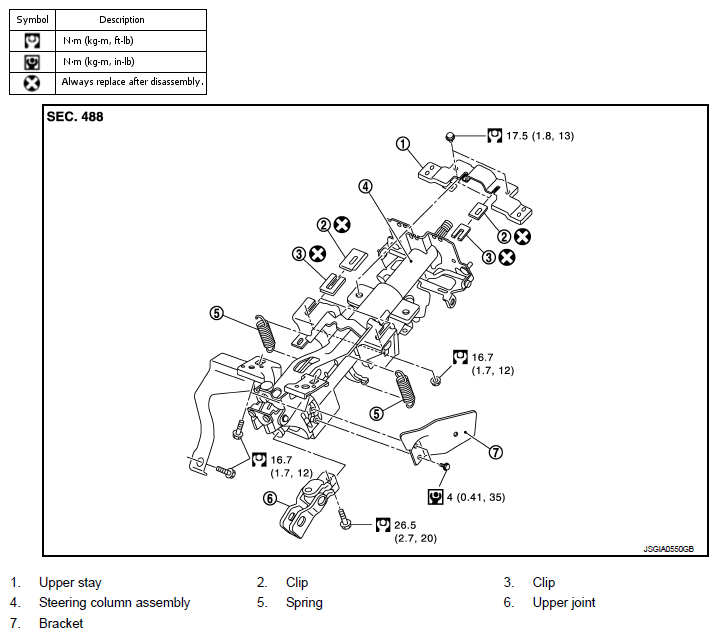

Fig 1: Exploded View Of Steering Column Without Electric Motor With Torque Specifications
G05973653Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
