Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission -- Convertible
>>
Removal And Installation
>>
Control Rod
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

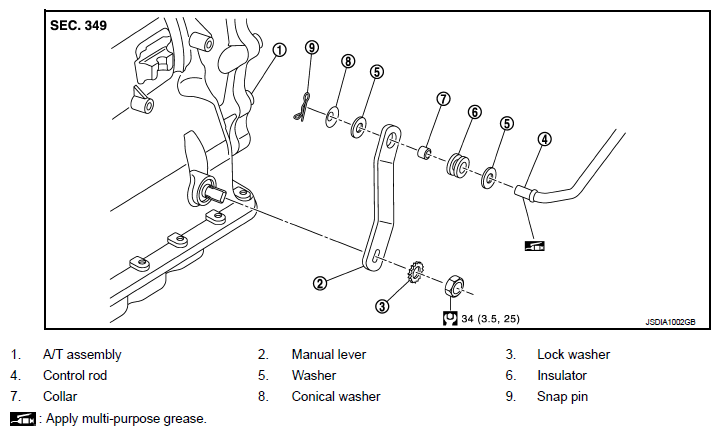

Fig 1: Exploded View Of Control Rod With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
