Exploded View

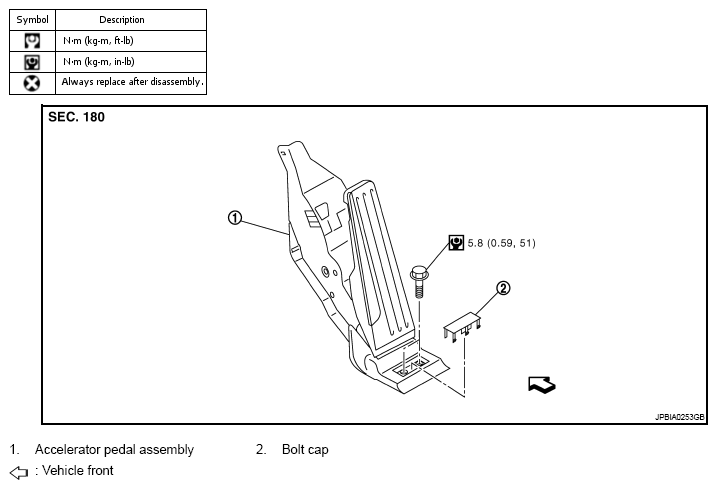

Fig 1: Accelerator Pedal Assembly And Bolt Cap With Torque Specifications
G06326888Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
