Component Parts Location

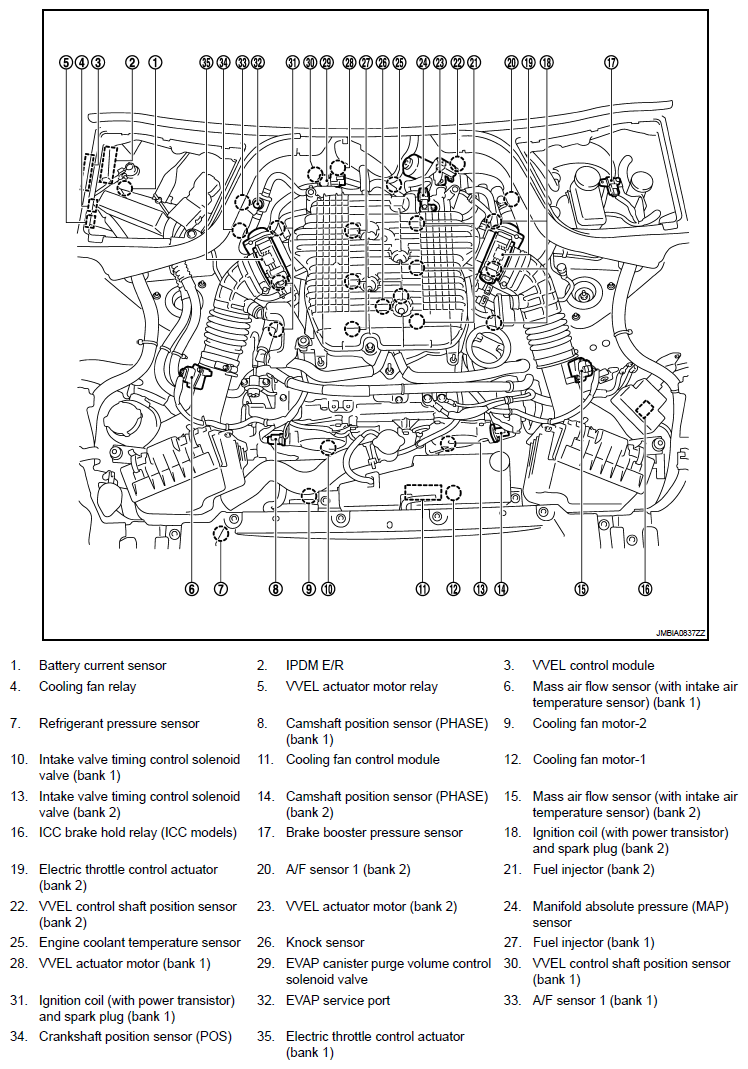

Fig 1: Identifying Automatic Speed Control Device (ASCD) Component Parts Location
G06333521Courtesy of NISSAN MOTOR CO., U.S.A.

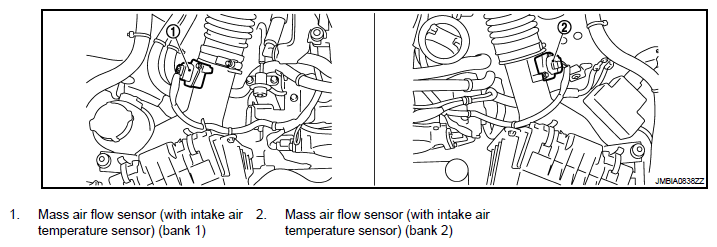

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)
G06333522Courtesy of NISSAN MOTOR CO., U.S.A.

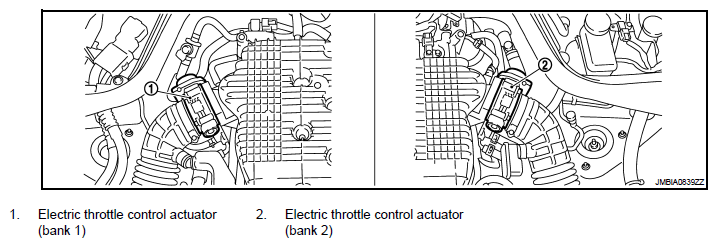

Fig 3: Identifying Electric Throttle Control Actuator (Bank 1 And 2)
G06333523Courtesy of NISSAN MOTOR CO., U.S.A.

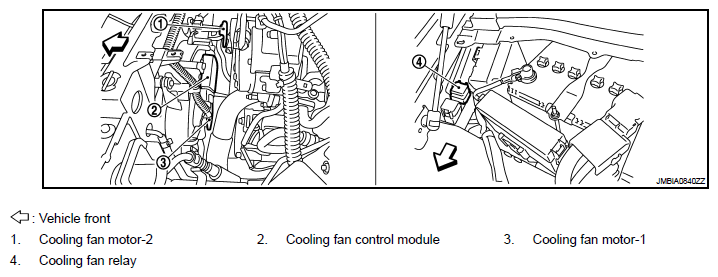

Fig 4: Identifying Cooling Fan Motor-2, Cooling Fan Control Module, Cooling Fan Motor-1 And Cooling Fan Relay
G06333524Courtesy of NISSAN MOTOR CO., U.S.A.

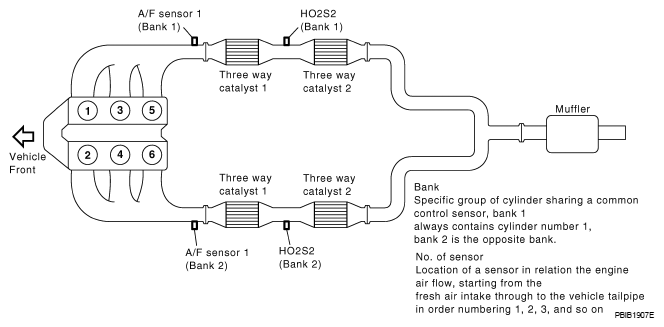

Fig 5: Identifying A/F Sensor 1, HO2S2 And Cylinder Group
G06333525Courtesy of NISSAN MOTOR CO., U.S.A.

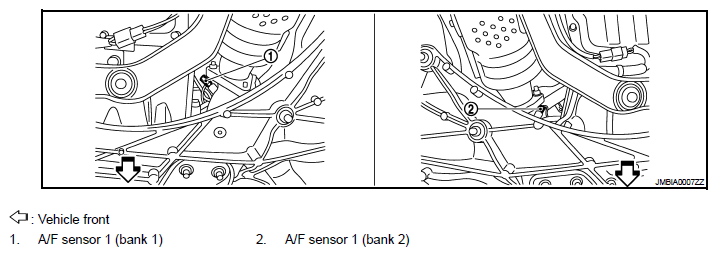

Fig 6: Identifying A/F Sensor 1 (Bank 1 And 2)
G06333526Courtesy of NISSAN MOTOR CO., U.S.A.

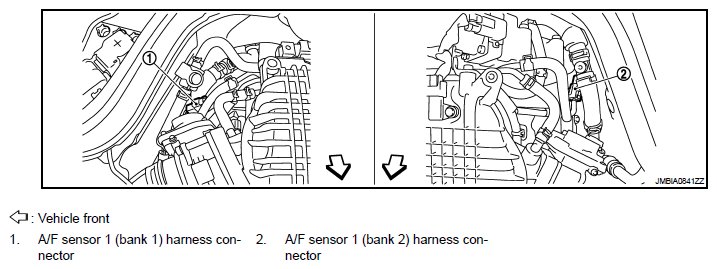

Fig 7: Identifying A/F Sensor 1 Harness Connector (Bank 1 And 2)
G06333527Courtesy of NISSAN MOTOR CO., U.S.A.

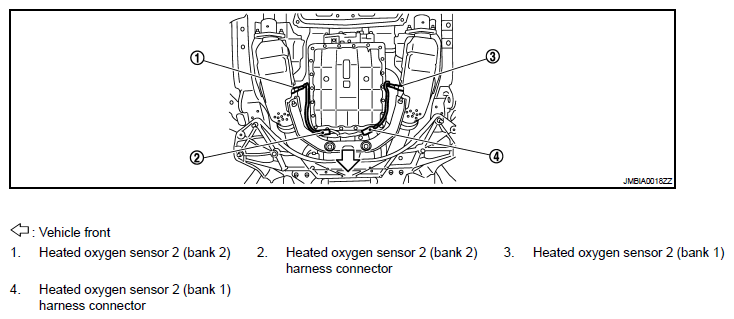

Fig 8: Identifying Heated Oxygen Sensor 2 And Heated Oxygen Sensor 2 Harness Connector
G06333528Courtesy of NISSAN MOTOR CO., U.S.A.

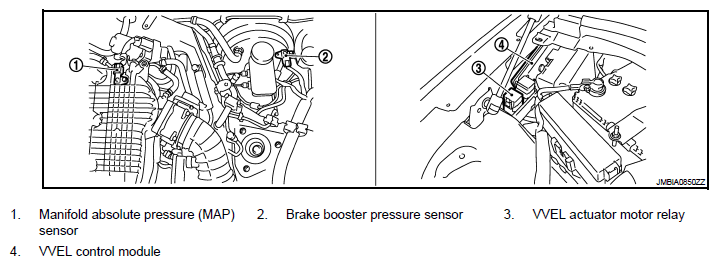

Fig 9: Identifying Manifold Absolute Pressure (MAP) Sensor, Brake Booster Pressure Sensor, VVEL Actuator Motor Relay And VVEL Control Module
G06333529Courtesy of NISSAN MOTOR CO., U.S.A.

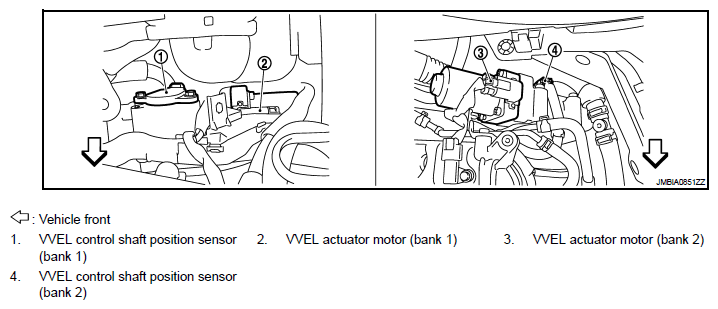

Fig 10: Identifying VVEL Control Shaft Position Sensor, VVEL Actuator Motor And VVEL Control Shaft Position Sensor
G06333530Courtesy of NISSAN MOTOR CO., U.S.A.

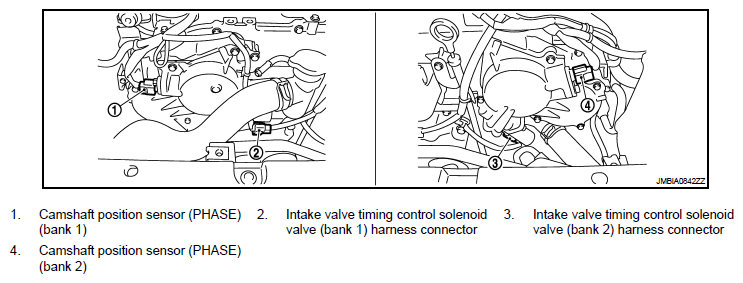

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector
G06333531Courtesy of NISSAN MOTOR CO., U.S.A.

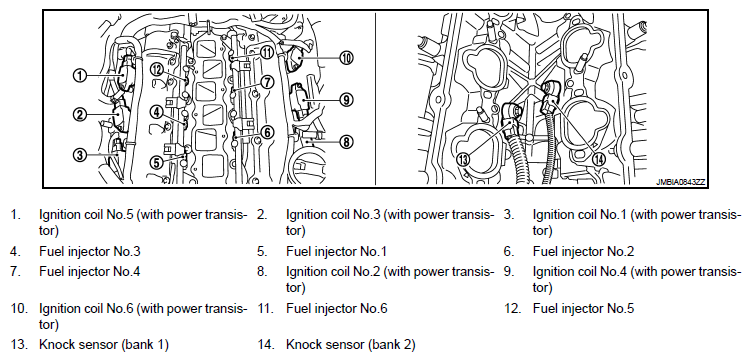

Fig 12: Identifying Ignition Coil No. 5, Ignition Coil No. 3, Ignition Coil No. 1, Fuel Injector No. 3 And Knock Sensor
G06333532Courtesy of NISSAN MOTOR CO., U.S.A.

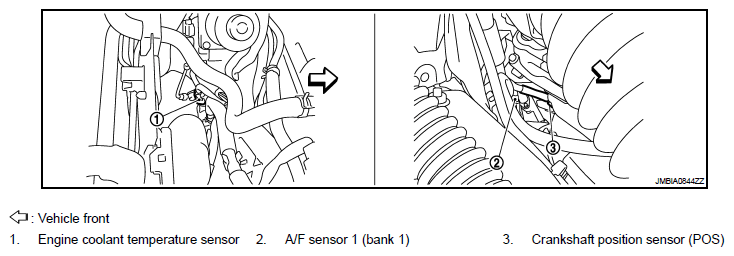

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor 1 And Crankshaft Position Sensor
G06333533Courtesy of NISSAN MOTOR CO., U.S.A.

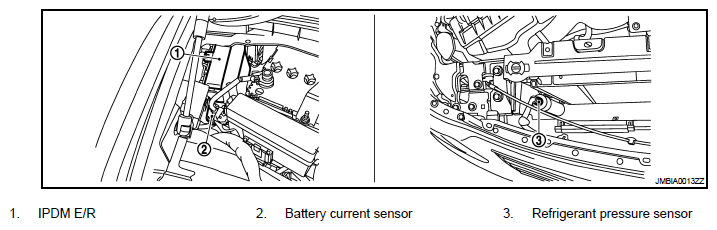

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor
G06333534Courtesy of NISSAN MOTOR CO., U.S.A.

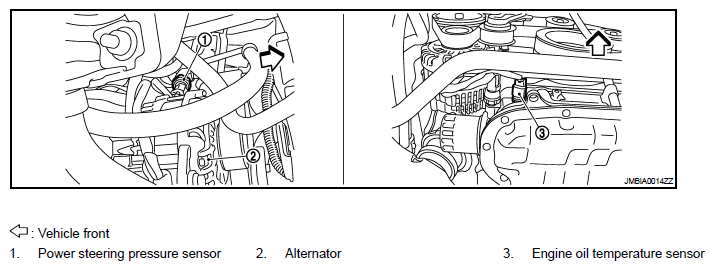

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor
G06333535Courtesy of NISSAN MOTOR CO., U.S.A.

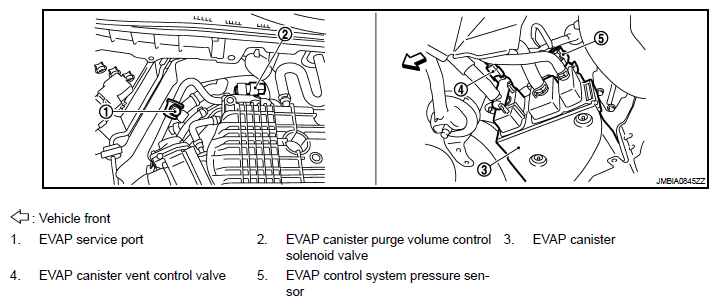

Fig 16: Identifying EVAP Service Port, EVAP Canister Purge Volume Control Solenoid Valve, EVAP Canister, EVAP Canister Vent Control Valve
G06333536Courtesy of NISSAN MOTOR CO., U.S.A.

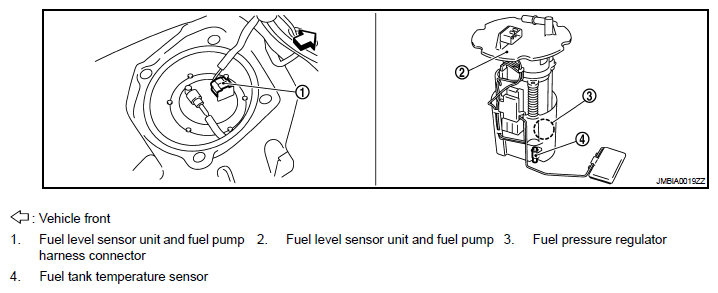

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector, Fuel Pressure Regulator And Fuel Tank Temperature Sensor
G06333537Courtesy of NISSAN MOTOR CO., U.S.A.

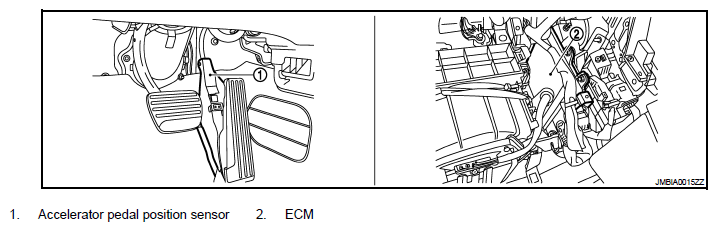

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM
G06333538Courtesy of NISSAN MOTOR CO., U.S.A.

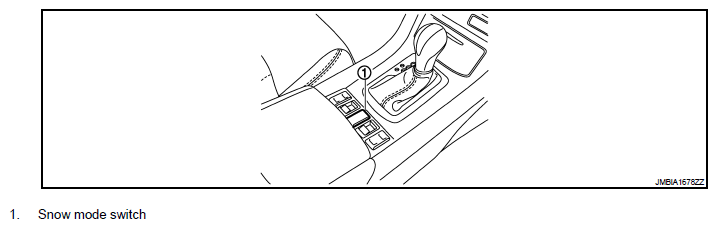

Fig 19: Identifying Snow Mode Switch
G06333539Courtesy of NISSAN MOTOR CO., U.S.A.

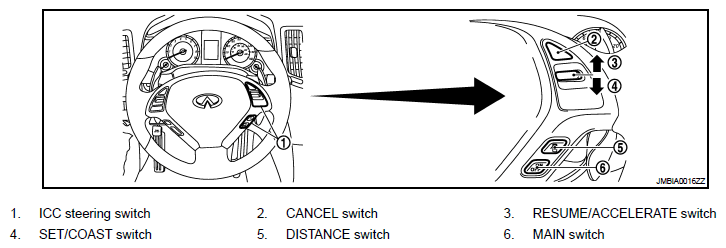

Fig 20: Identifying ICC Steering Switch, Cancel Switch, Resume/Accelerate Switch, Set/Coast Switch, Distance Switch And Main Switch
G06333540Courtesy of NISSAN MOTOR CO., U.S.A.

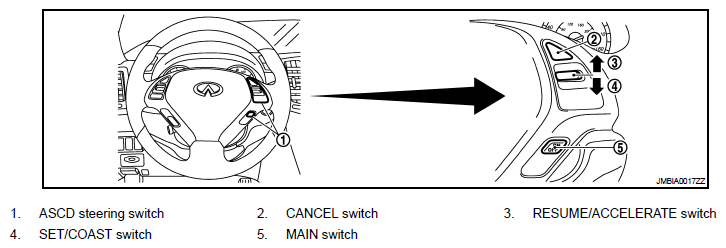

Fig 21: Identifying ASCD Steering Switch, Cancel Switch, Resume/Accelerate Switch, Set/Coast Switch And Main Switch
G06333541Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 22: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal And Clutch Pedal
G06333542Courtesy of NISSAN MOTOR CO., U.S.A.
