System Diagram

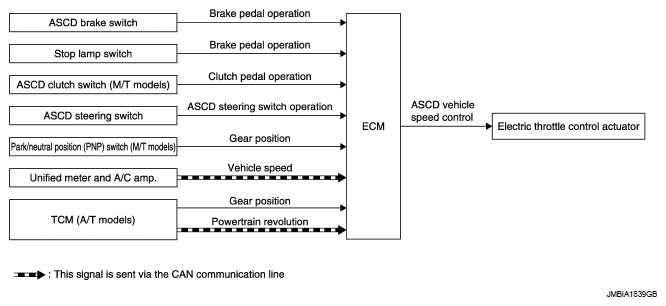

Fig 1: Automatic Speed Control Device (ASCD) - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
