Component Parts Location

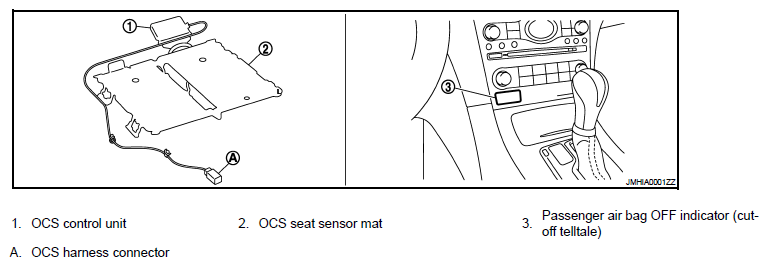

Fig 1: Identifying Occupant Classification System Component Parts Location
G06331951Courtesy of NISSAN NORTH AMERICA, INC.
