Cross-Sectional View

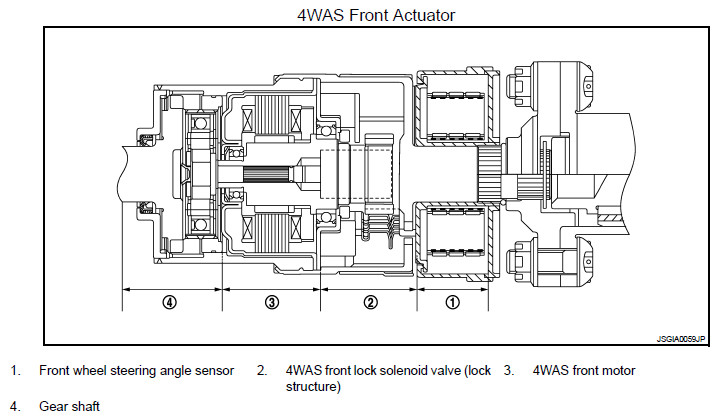

Fig 1: Identifying 4WAS Front Actuator Part Location
G06331863Courtesy of NISSAN MOTOR CO., U.S.A.

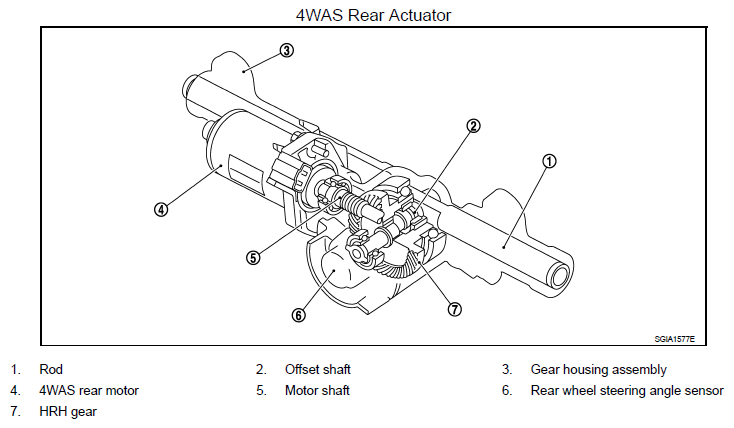

Fig 2: Identifying 4WAS Rear Actuator Part Location
G06331864Courtesy of NISSAN MOTOR CO., U.S.A.
