Exploded View

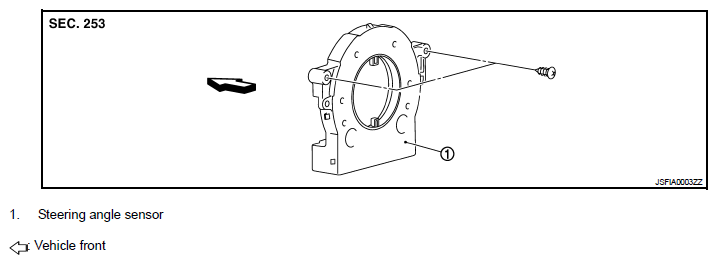

Fig 1: Identifying Steering Angle Sensor
G06322955Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION "COMPONENTS " for symbol marks in the figure.
