Component Parts Location

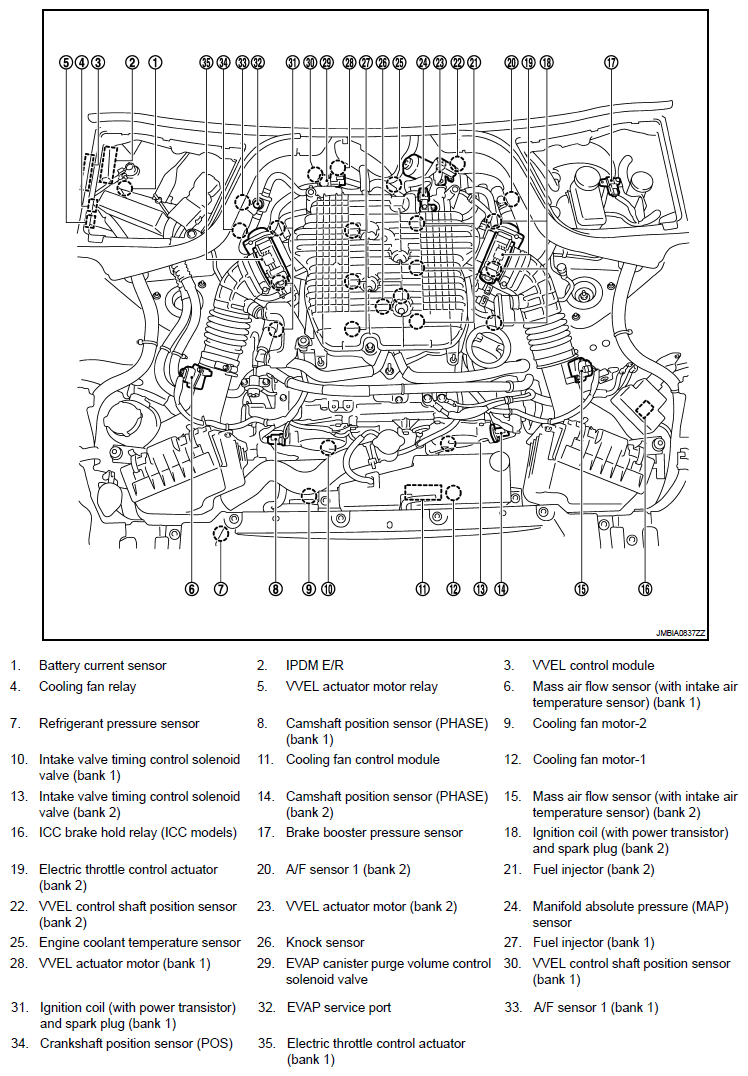

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location (1 Of 22)

G06320528

Courtesy of NISSAN NORTH AMERICA, INC.

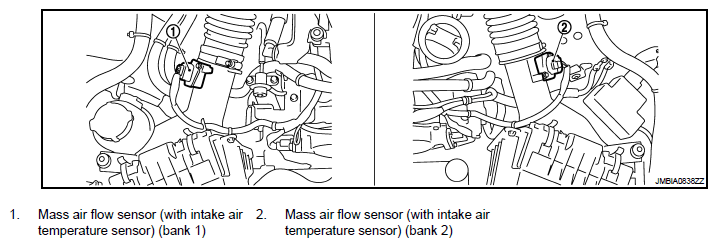

Fig 2: Identifying Air Conditioning Cut Control Component Parts Location (2 Of 22)

G06320529

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Air Conditioning Cut Control Component Parts Location (3 Of 22)

G06320530

Courtesy of NISSAN NORTH AMERICA, INC.

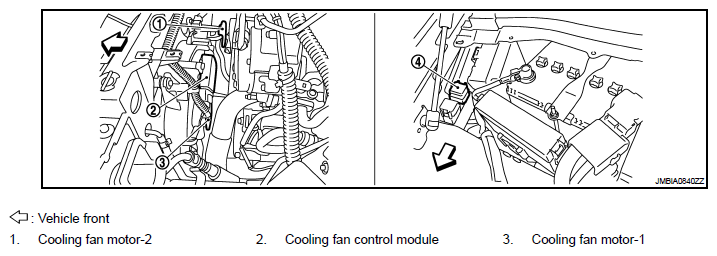

Fig 4: Identifying Air Conditioning Cut Control Component Parts Location (4 Of 22)

G06320531

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Air Conditioning Cut Control Component Parts Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Air Conditioning Cut Control Component Parts Location (6 Of 22)

G06320533

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Air Conditioning Cut Control Component Parts Location (7 Of 22)

G06320534

Courtesy of NISSAN NORTH AMERICA, INC.

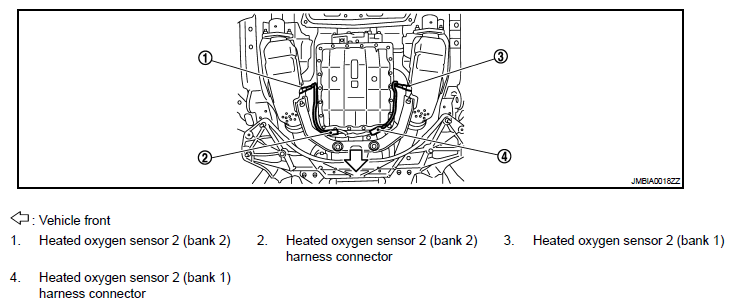

Fig 8: Identifying Air Conditioning Cut Control Component Parts Location (8 Of 22)

G06320535

Courtesy of NISSAN NORTH AMERICA, INC.

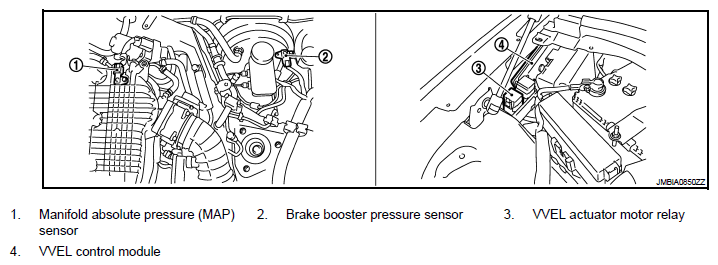

Fig 9: Identifying Air Conditioning Cut Control Component Parts Location (9 Of 22)

G06320536

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Air Conditioning Cut Control Component Parts Location (10 Of 22)

G06320537

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Air Conditioning Cut Control Component Parts Location (11 Of 22)

G06320538

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Air Conditioning Cut Control Component Parts Location (12 Of 22)

G06320539

Courtesy of NISSAN NORTH AMERICA, INC.

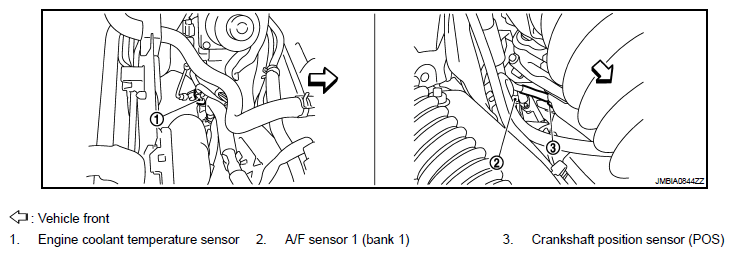

Fig 13: Identifying Air Conditioning Cut Control Component Parts Location (13 Of 22)

G06320540

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Air Conditioning Cut Control Component Parts Location (14 Of 22)

G06320541

Courtesy of NISSAN NORTH AMERICA, INC.

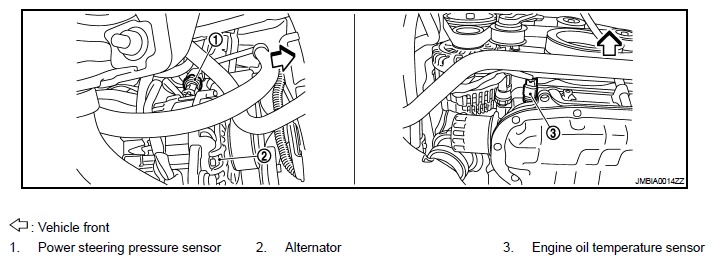

Fig 15: Identifying Air Conditioning Cut Control Component Parts Location (15 Of 22)

G06320542

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Air Conditioning Cut Control Component Parts Location (16 Of 22)

G06320543

Courtesy of NISSAN NORTH AMERICA, INC.

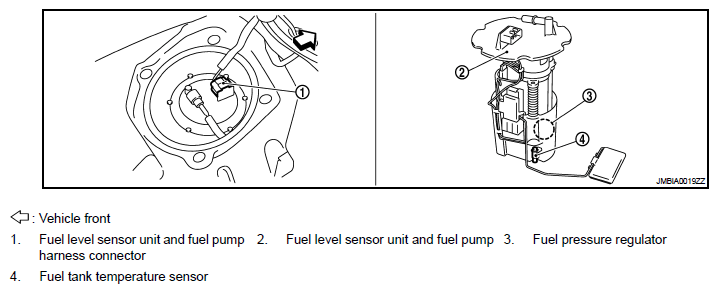

Fig 17: Identifying Air Conditioning Cut Control Component Parts Location (17 Of 22)

G06320544

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Air Conditioning Cut Control Component Parts Location (18 Of 22)

G06320545

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Air Conditioning Cut Control Component Parts Location (19 Of 22)

G06320546

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Air Conditioning Cut Control Component Parts Location (20 Of 22)

G06320547

Courtesy of NISSAN NORTH AMERICA, INC.

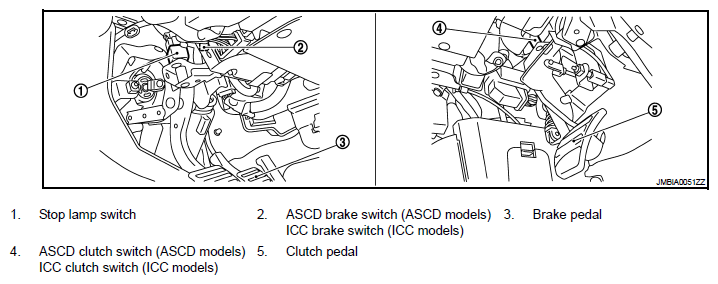

Fig 21: Identifying Air Conditioning Cut Control Component Parts Location (21 Of 22)

G06320548

Courtesy of NISSAN NORTH AMERICA, INC.

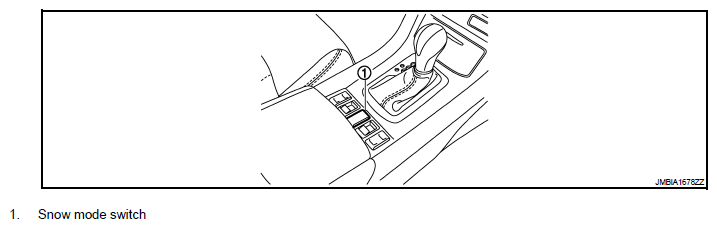

Fig 22: Identifying Air Conditioning Cut Control Component Parts Location (22 Of 22)

G06320549

Courtesy of NISSAN NORTH AMERICA, INC.
