Component Parts Location

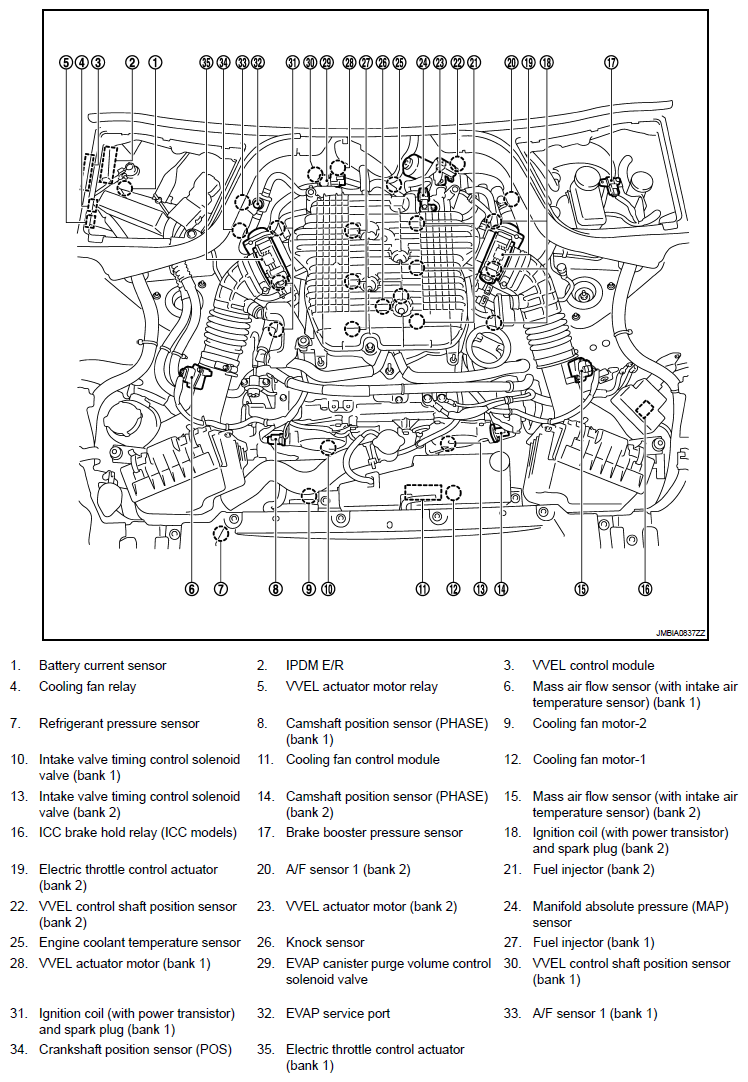

Fig 1: Identifying Automatic Speed Control Device Component Parts Location (1 Of 22)

G06320551

Courtesy of NISSAN NORTH AMERICA, INC.

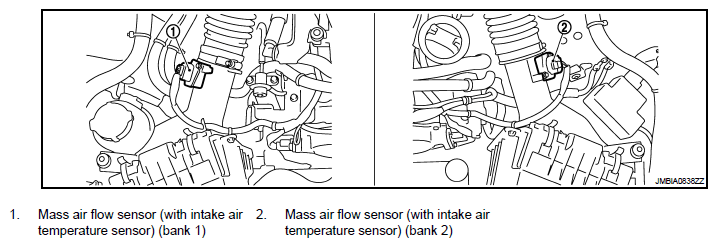

Fig 2: Identifying Automatic Speed Control Device Component Parts Location (2 Of 22)

G06320552

Courtesy of NISSAN NORTH AMERICA, INC.

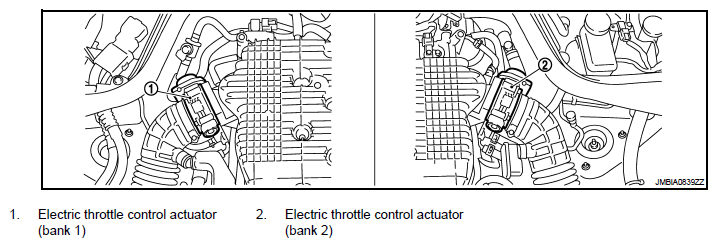

Fig 3: Identifying Automatic Speed Control Device Component Parts Location (3 Of 22)

G06320553

Courtesy of NISSAN NORTH AMERICA, INC.

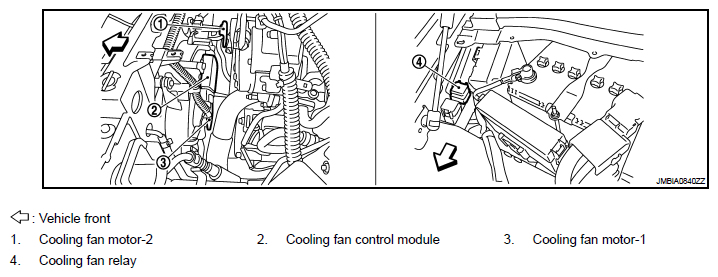

Fig 4: Identifying Automatic Speed Control Device Component Parts Location (4 Of 22)

G06320554

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Automatic Speed Control Device Component Parts Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

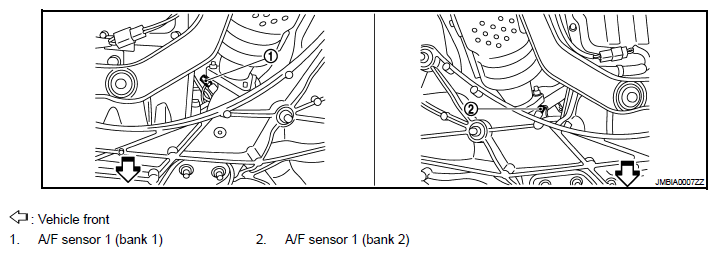

Fig 6: Identifying Automatic Speed Control Device Component Parts Location (6 Of 22)

G06320556

Courtesy of NISSAN NORTH AMERICA, INC.

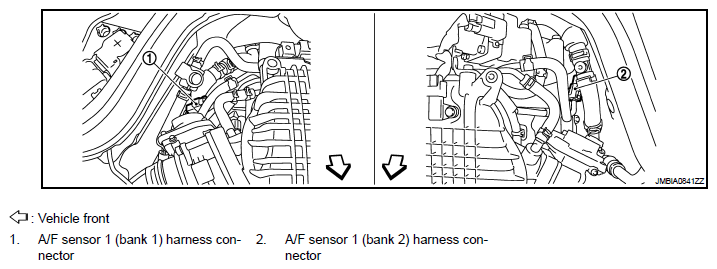

Fig 7: Identifying Automatic Speed Control Device Component Parts Location (7 Of 22)

G06320557

Courtesy of NISSAN NORTH AMERICA, INC.

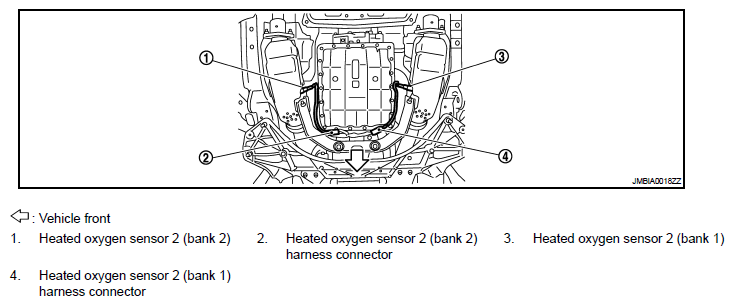

Fig 8: Identifying Automatic Speed Control Device Component Parts Location (8 Of 22)

G06320558

Courtesy of NISSAN NORTH AMERICA, INC.

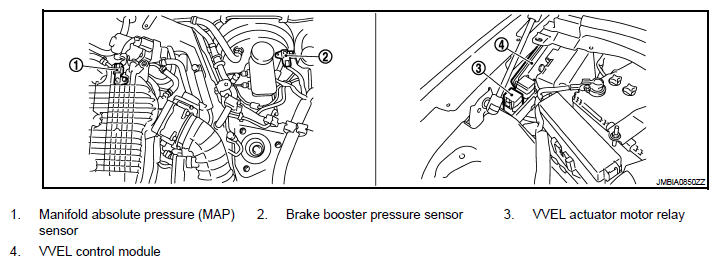

Fig 9: Identifying Automatic Speed Control Device Component Parts Location (9 Of 22)

G06320559

Courtesy of NISSAN NORTH AMERICA, INC.

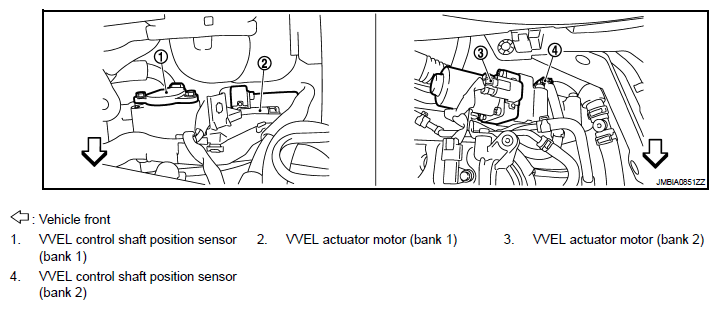

Fig 10: Identifying Automatic Speed Control Device Component Parts Location (10 Of 22)

G06320560

Courtesy of NISSAN NORTH AMERICA, INC.

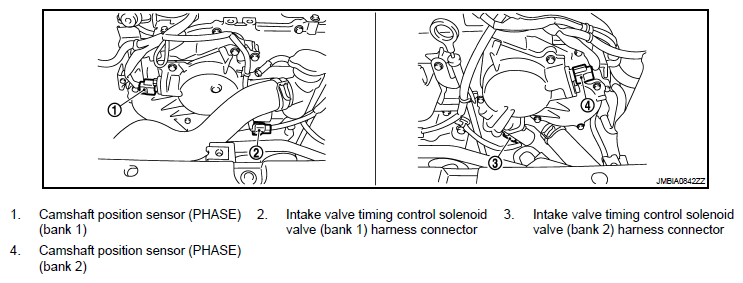

Fig 11: Identifying Automatic Speed Control Device Component Parts Location (11 Of 22)

G06320561

Courtesy of NISSAN NORTH AMERICA, INC.

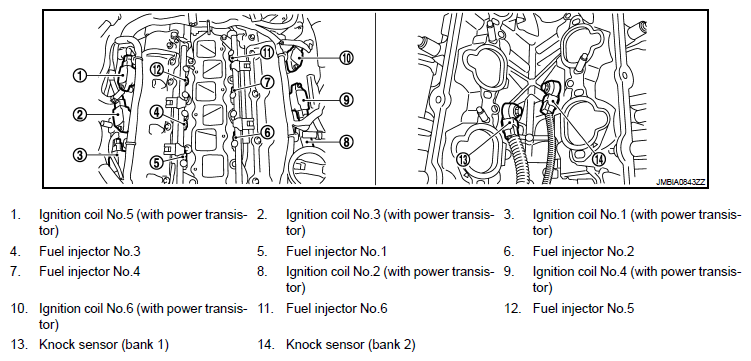

Fig 12: Identifying Automatic Speed Control Device Component Parts Location (12 Of 22)

G06320562

Courtesy of NISSAN NORTH AMERICA, INC.

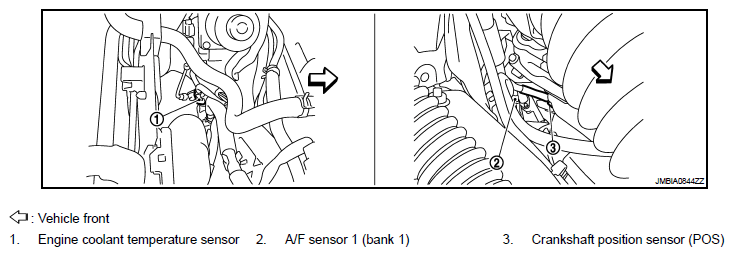

Fig 13: Identifying Automatic Speed Control Device Component Parts Location (13 Of 22)

G06320563

Courtesy of NISSAN NORTH AMERICA, INC.

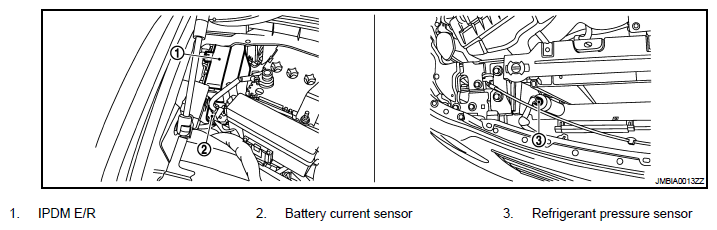

Fig 14: Identifying Automatic Speed Control Device Component Parts Location (14 Of 22)

G06320564

Courtesy of NISSAN NORTH AMERICA, INC.

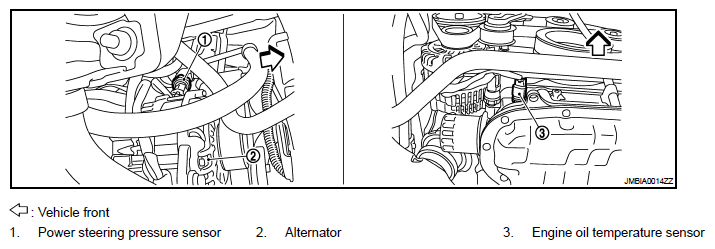

Fig 15: Identifying Automatic Speed Control Device Component Parts Location (15 Of 22)

G06320565

Courtesy of NISSAN NORTH AMERICA, INC.

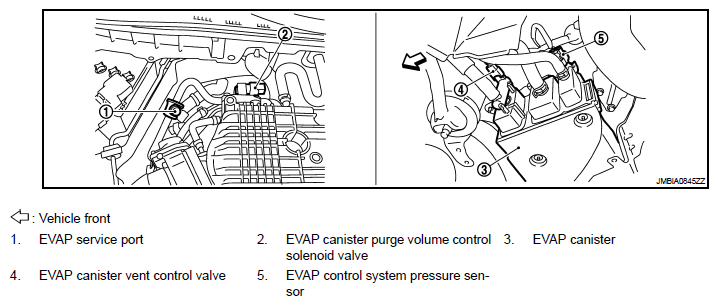

Fig 16: Identifying Automatic Speed Control Device Component Parts Location (16 Of 22)

G06320566

Courtesy of NISSAN NORTH AMERICA, INC.

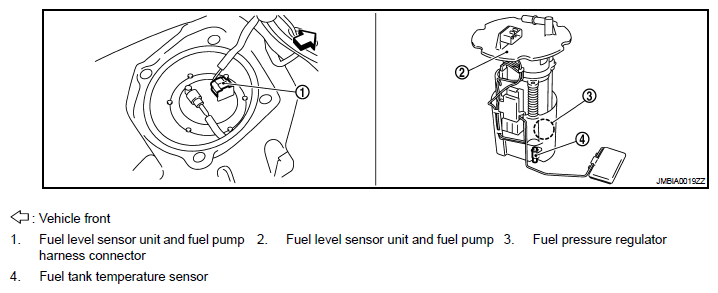

Fig 17: Identifying Automatic Speed Control Device Component Parts Location (17 Of 22)

G06320567

Courtesy of NISSAN NORTH AMERICA, INC.

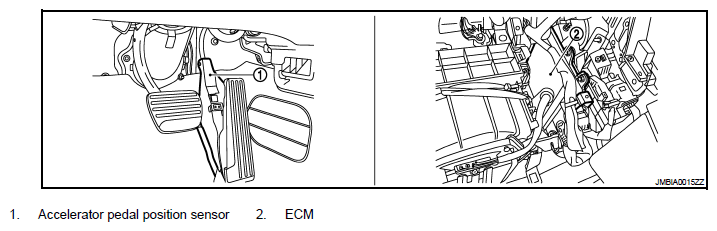

Fig 18: Identifying Automatic Speed Control Device Component Parts Location (18 Of 22)

G06320568

Courtesy of NISSAN NORTH AMERICA, INC.

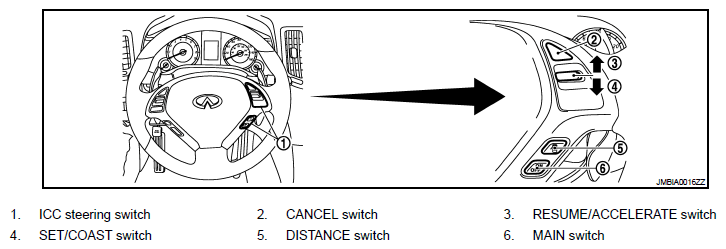

Fig 19: Identifying Automatic Speed Control Device Component Parts Location (19 Of 22)

G06320569

Courtesy of NISSAN NORTH AMERICA, INC.

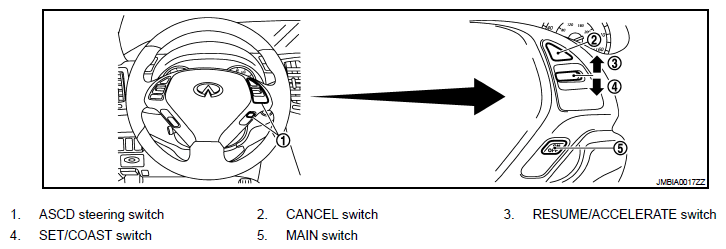

Fig 20: Identifying Automatic Speed Control Device Component Parts Location (20 Of 22)

G06320570

Courtesy of NISSAN NORTH AMERICA, INC.

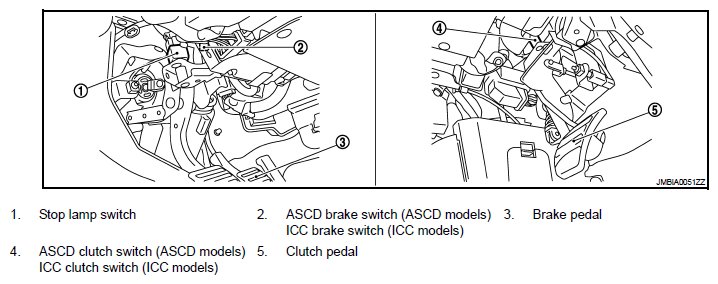

Fig 21: Identifying Automatic Speed Control Device Component Parts Location (21 Of 22)

G06320571

Courtesy of NISSAN NORTH AMERICA, INC.

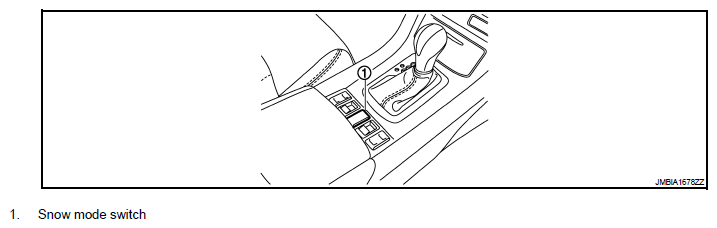

Fig 22: Identifying Automatic Speed Control Device Component Parts Location (22 Of 22)

G06320572

Courtesy of NISSAN NORTH AMERICA, INC.
