Component Parts Location

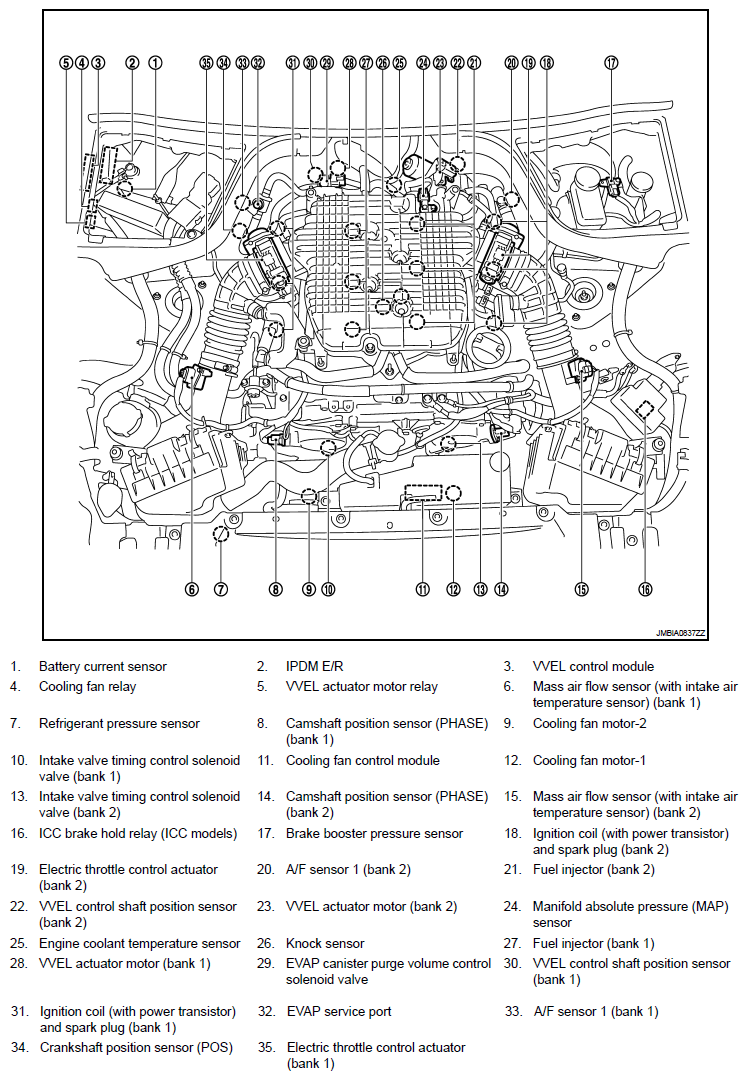

Fig 1: Identifying Electric Ignition System Component Parts Location (1 Of 22)

G06320505

Courtesy of NISSAN NORTH AMERICA, INC.

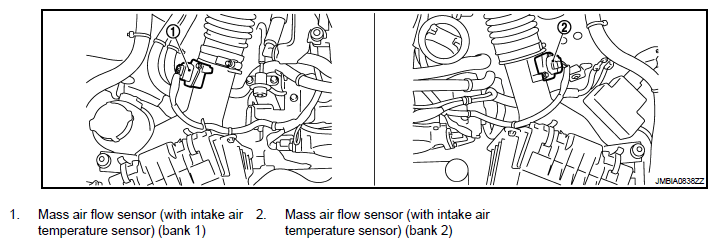

Fig 2: Identifying Electric Ignition System Component Parts Location (2 Of 22)

G06320506

Courtesy of NISSAN NORTH AMERICA, INC.

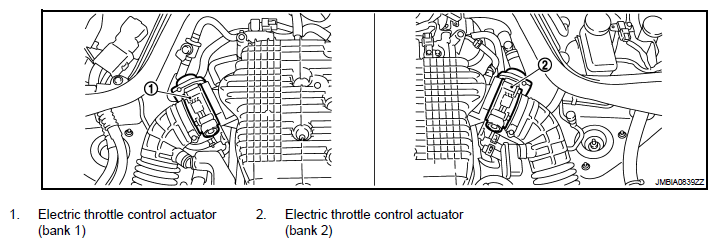

Fig 3: Identifying Electric Ignition System Component Parts Location (3 Of 22)

G06320507

Courtesy of NISSAN NORTH AMERICA, INC.

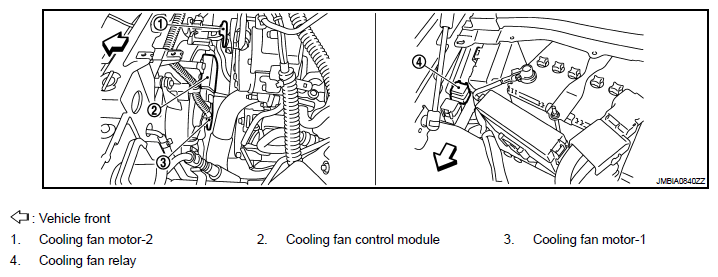

Fig 4: Identifying Electric Ignition System Component Parts Location (4 Of 22)

G06320508

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Electric Ignition System Component Parts Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Electric Ignition System Component Parts Location (6 Of 22)

G06320510

Courtesy of NISSAN NORTH AMERICA, INC.

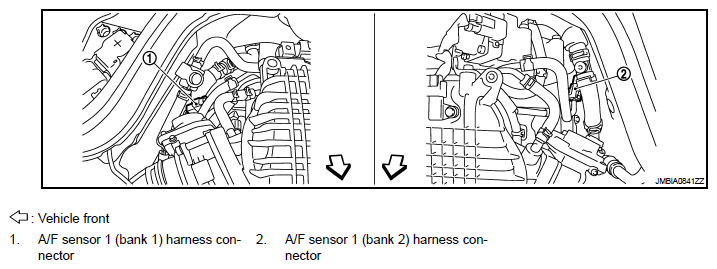

Fig 7: Identifying Electric Ignition System Component Parts Location (7 Of 22)

G06320511

Courtesy of NISSAN NORTH AMERICA, INC.

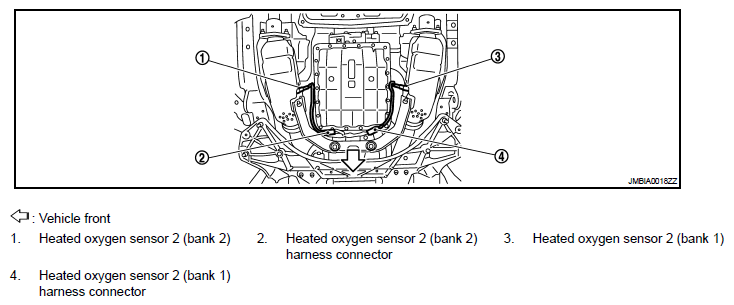

Fig 8: Identifying Electric Ignition System Component Parts Location (8 Of 22)

G06320512

Courtesy of NISSAN NORTH AMERICA, INC.

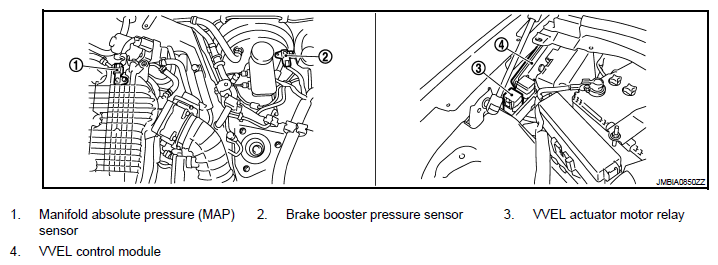

Fig 9: Identifying Electric Ignition System Component Parts Location (9 Of 22)

G06320513

Courtesy of NISSAN NORTH AMERICA, INC.

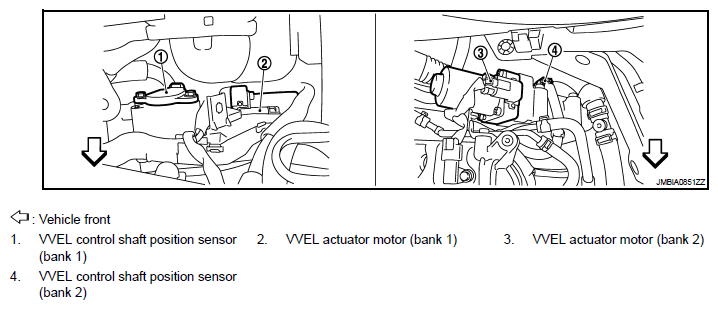

Fig 10: Identifying Electric Ignition System Component Parts Location (10 Of 22)

G06320514

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Electric Ignition System Component Parts Location (11 Of 22)

G06320515

Courtesy of NISSAN NORTH AMERICA, INC.

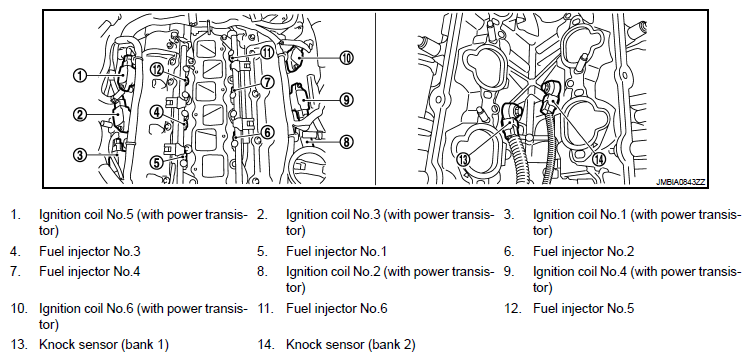

Fig 12: Identifying Electric Ignition System Component Parts Location (12 Of 22)

G06320516

Courtesy of NISSAN NORTH AMERICA, INC.

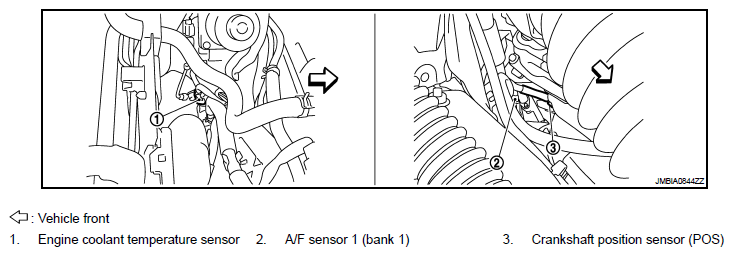

Fig 13: Identifying Electric Ignition System Component Parts Location (13 Of 22)

G06320517

Courtesy of NISSAN NORTH AMERICA, INC.

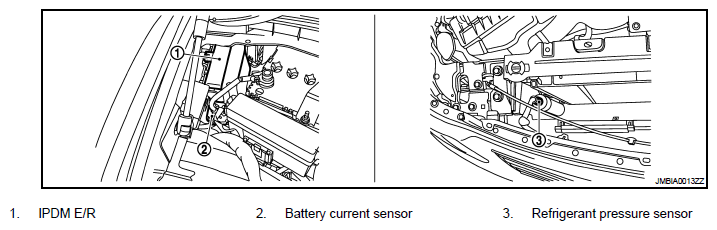

Fig 14: Identifying Electric Ignition System Component Parts Location (14 Of 22)

G06320518

Courtesy of NISSAN NORTH AMERICA, INC.

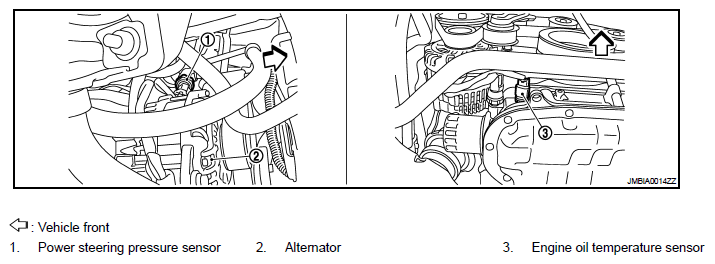

Fig 15: Identifying Electric Ignition System Component Parts Location (15 Of 22)

G06320519

Courtesy of NISSAN NORTH AMERICA, INC.

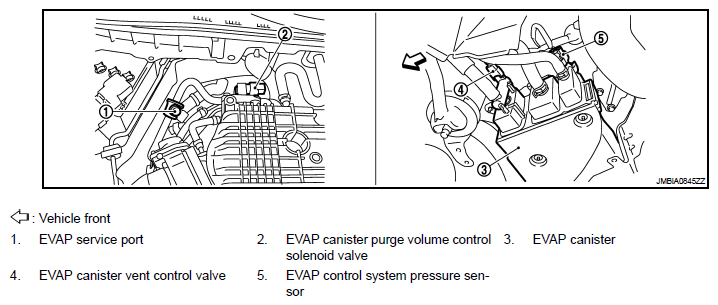

Fig 16: Identifying Electric Ignition System Component Parts Location (16 Of 22)

G06320520

Courtesy of NISSAN NORTH AMERICA, INC.

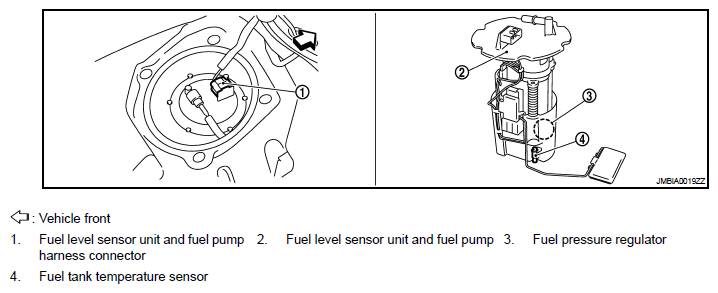

Fig 17: Identifying Electric Ignition System Component Parts Location (17 Of 22)

G06320521

Courtesy of NISSAN NORTH AMERICA, INC.

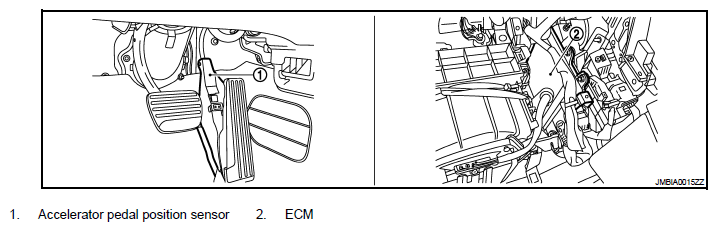

Fig 18: Identifying Electric Ignition System Component Parts Location (18 Of 22)

G06320522

Courtesy of NISSAN NORTH AMERICA, INC.

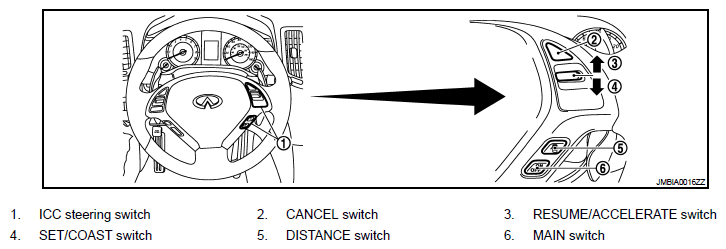

Fig 19: Identifying Electric Ignition System Component Parts Location (19 Of 22)

G06320523

Courtesy of NISSAN NORTH AMERICA, INC.

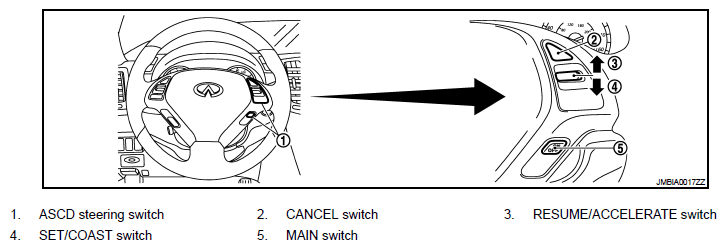

Fig 20: Identifying Electric Ignition System Component Parts Location (20 Of 22)

G06320524

Courtesy of NISSAN NORTH AMERICA, INC.

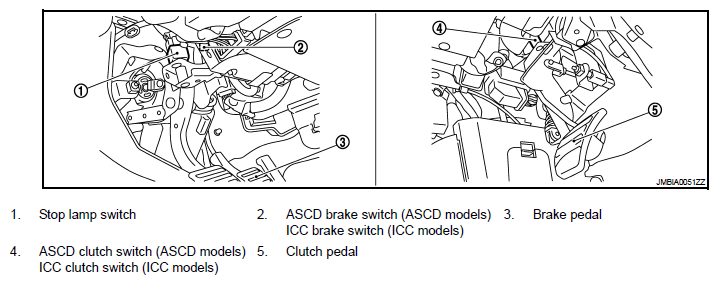

Fig 21: Identifying Electric Ignition System Component Parts Location (21 Of 22)

G06320525

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: Identifying Electric Ignition System Component Parts Location (22 Of 22)

G06320526

Courtesy of NISSAN NORTH AMERICA, INC.
