Component Parts Location

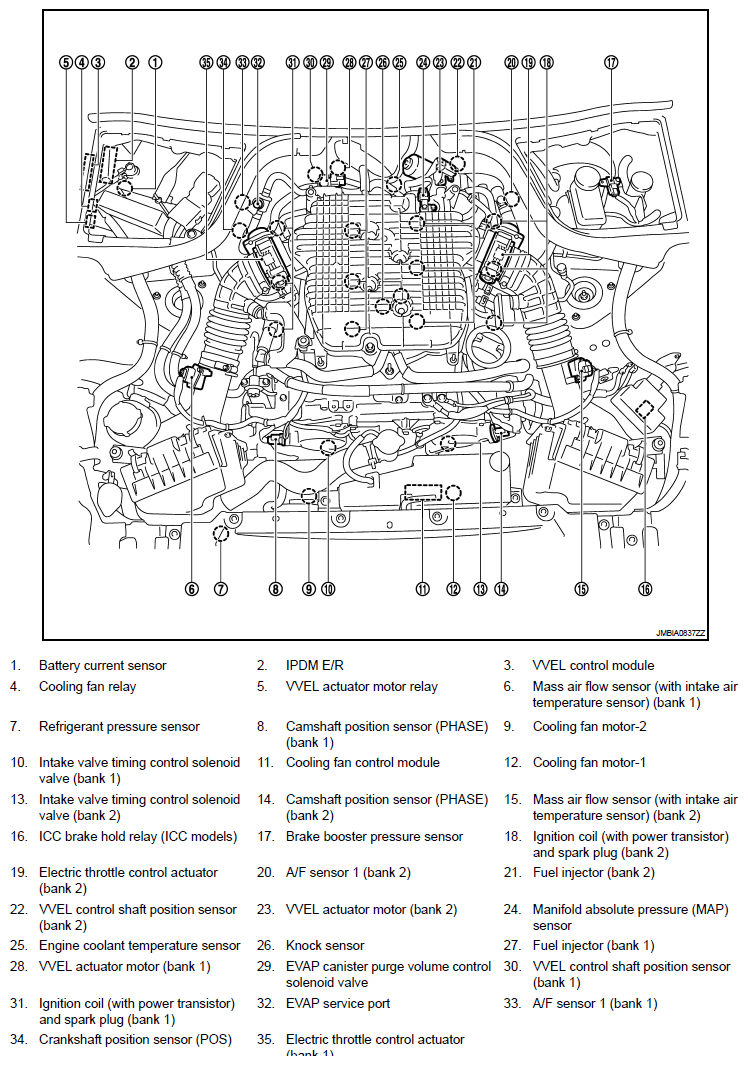

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 22)

G06320457

Courtesy of NISSAN NORTH AMERICA, INC.

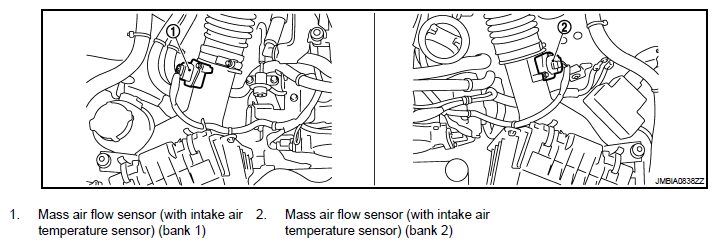

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 22)

G06320458

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 22)

G06320459

Courtesy of NISSAN NORTH AMERICA, INC.

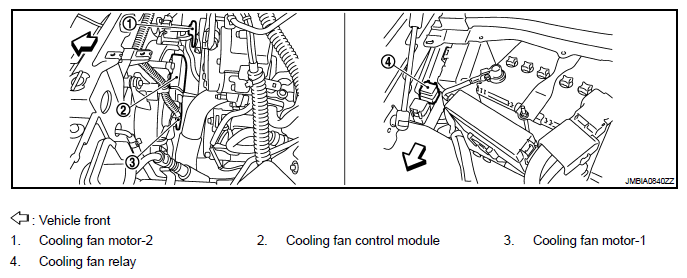

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 22)

G06320460

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 22)

G06320462

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 22)

G06320463

Courtesy of NISSAN NORTH AMERICA, INC.

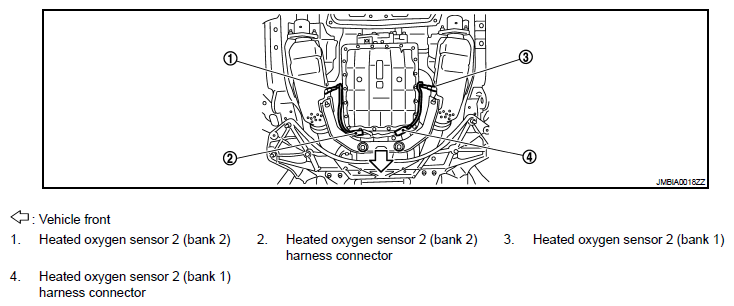

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 22)

G06320464

Courtesy of NISSAN NORTH AMERICA, INC.

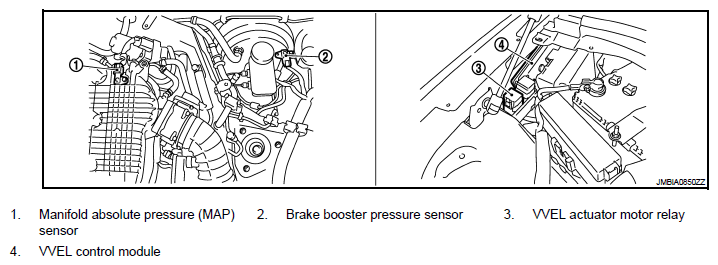

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 22)

G06320465

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 22)

G06320466

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 22)

G06320467

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 22)

G06320468

Courtesy of NISSAN NORTH AMERICA, INC.

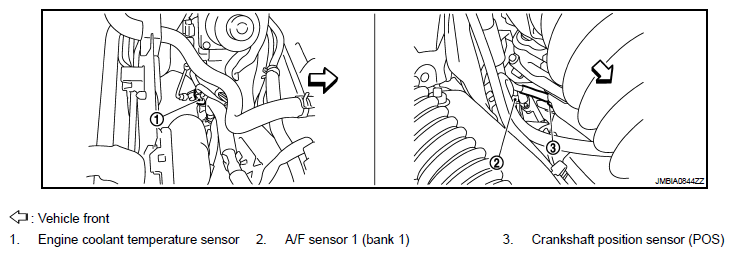

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 22)

G06320469

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 22)

G06320470

Courtesy of NISSAN NORTH AMERICA, INC.

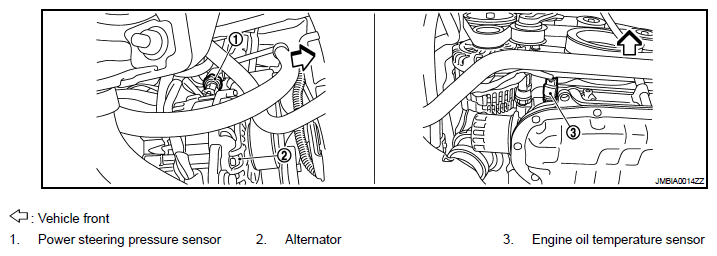

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 22)

G06320471

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 22)

G06320472

Courtesy of NISSAN NORTH AMERICA, INC.

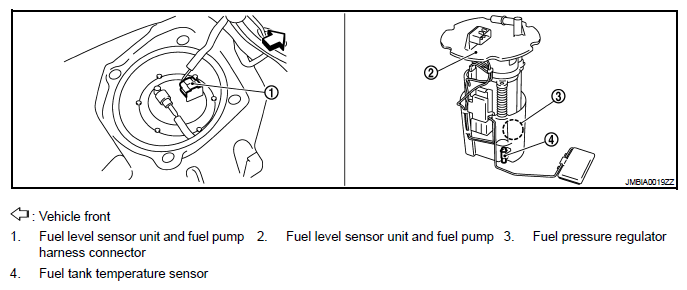

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 22)

G06320473

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 22)

G06320474

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 22)

G06320475

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 22)

G06320476

Courtesy of NISSAN NORTH AMERICA, INC.

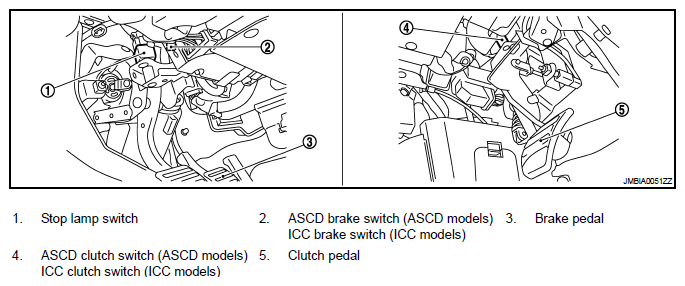

Fig 21: Identifying Engine Control System Component Parts Location (21 Of 22)

G06320477

Courtesy of NISSAN NORTH AMERICA, INC.

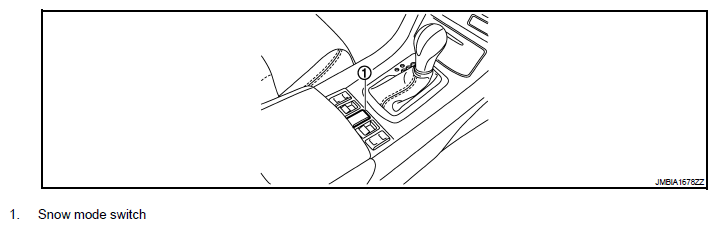

Fig 22: Identifying Engine Control System Component Parts Location (22 Of 22)

G06320478

Courtesy of NISSAN NORTH AMERICA, INC.
