Component Parts Location

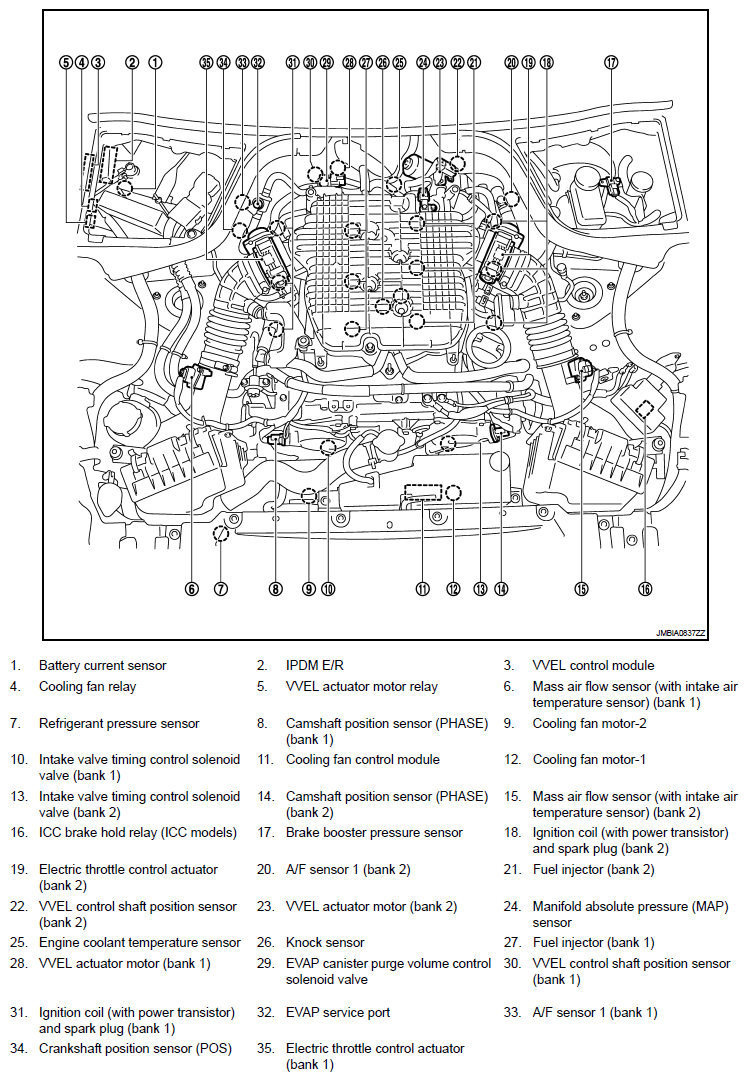

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 22)

G06320624

Courtesy of NISSAN NORTH AMERICA, INC.

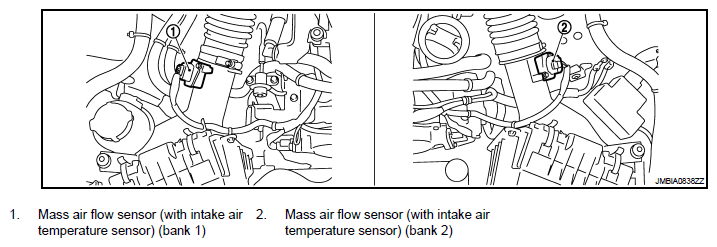

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 22)

G06320625

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 22)

G06320626

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 22)

G06320627

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 22)

G06320629

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 22)

G06320630

Courtesy of NISSAN NORTH AMERICA, INC.

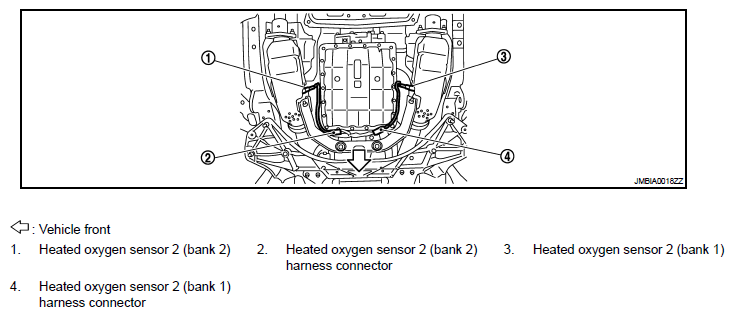

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 22)

G06320631

Courtesy of NISSAN NORTH AMERICA, INC.

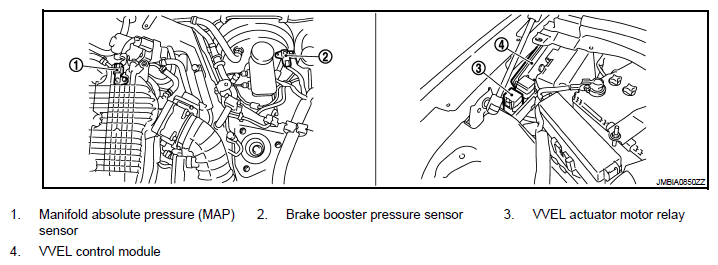

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 22)

G06320632

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 22)

G06320633

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 22)

G06320634

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 22)

G06320635

Courtesy of NISSAN NORTH AMERICA, INC.

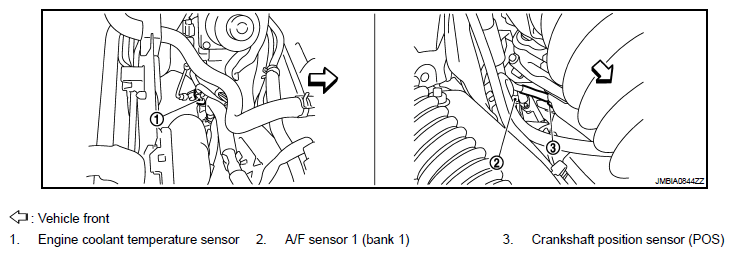

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 22)

G06320636

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 22)

G06320637

Courtesy of NISSAN NORTH AMERICA, INC.

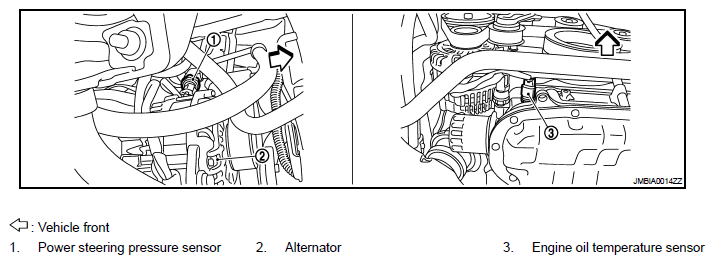

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 22)

G06320638

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 22)

G06320639

Courtesy of NISSAN NORTH AMERICA, INC.

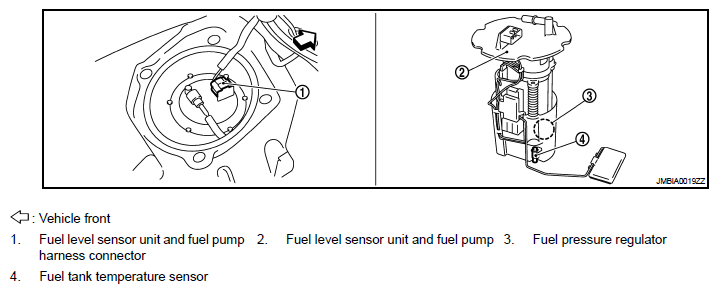

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 22)

G06320640

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 22)

G06320641

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 22)

G06320642

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 22)

G06320643

Courtesy of NISSAN NORTH AMERICA, INC.

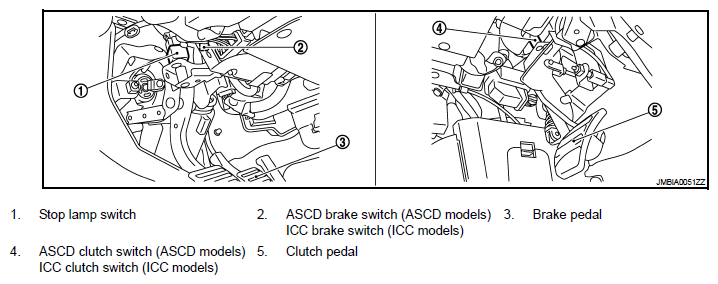

Fig 21: Identifying Intake Valve Timing Control Component Parts Location (21 Of 22)

G06320644

Courtesy of NISSAN NORTH AMERICA, INC.

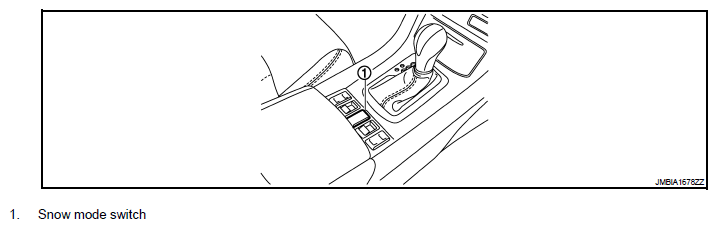

Fig 22: Identifying Intake Valve Timing Control Component Parts Location (22 Of 22)

G06320645

Courtesy of NISSAN NORTH AMERICA, INC.
