Component Parts Location

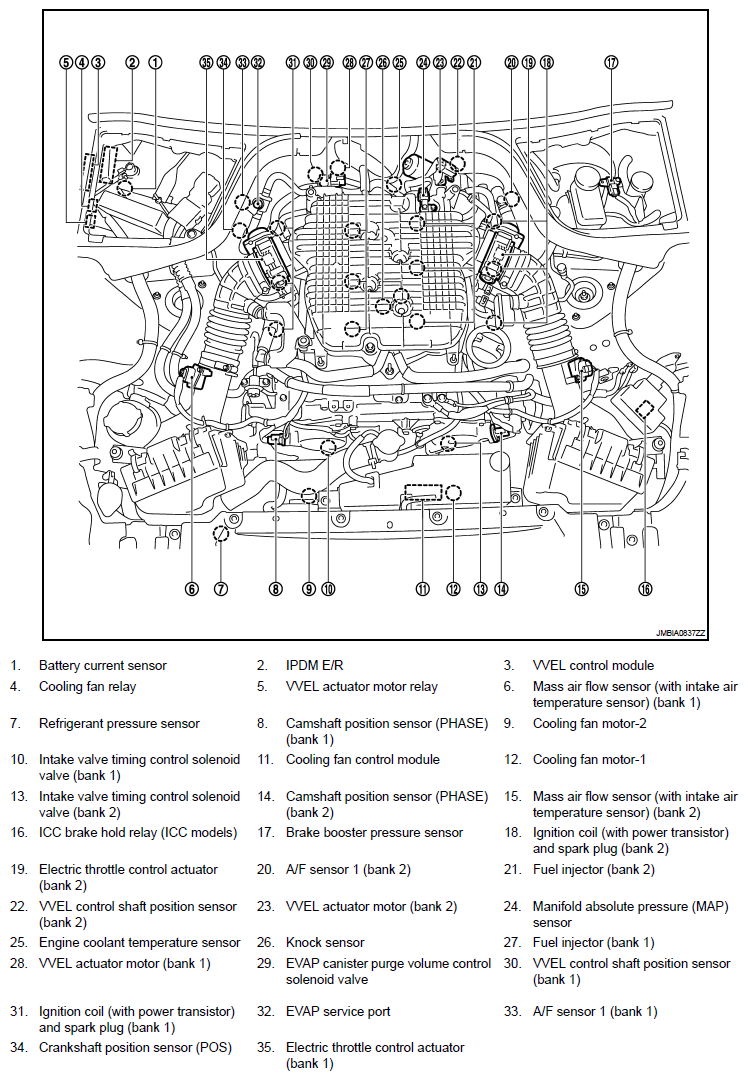

Fig 1: Identifying VVEL System Component Parts Location (1 Of 22)

G06320648

Courtesy of NISSAN NORTH AMERICA, INC.

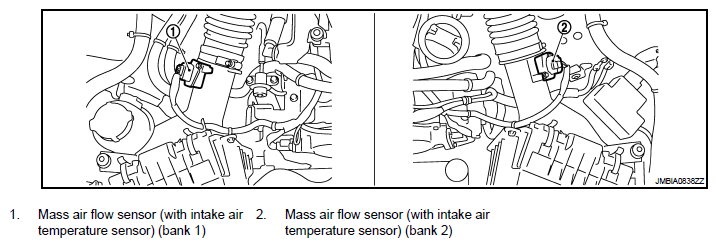

Fig 2: Identifying VVEL System Component Parts Location (2 Of 22)

G06320649

Courtesy of NISSAN NORTH AMERICA, INC.

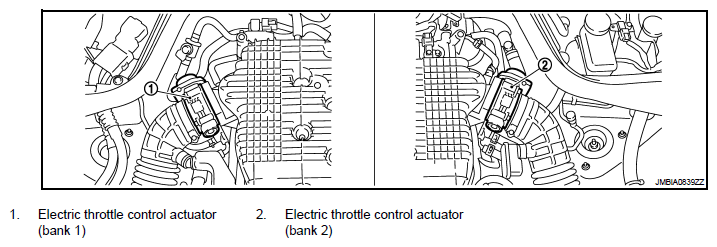

Fig 3: Identifying VVEL System Component Parts Location (3 Of 22)

G06320650

Courtesy of NISSAN NORTH AMERICA, INC.

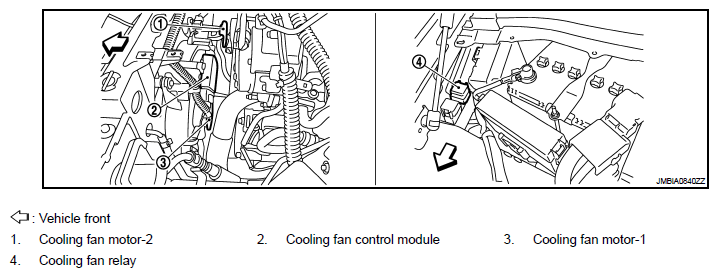

Fig 4: Identifying VVEL System Component Parts Location (4 Of 22)

G06320651

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying VVEL System Component Parts Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying VVEL System Component Parts Location (6 Of 22)

G06320653

Courtesy of NISSAN NORTH AMERICA, INC.

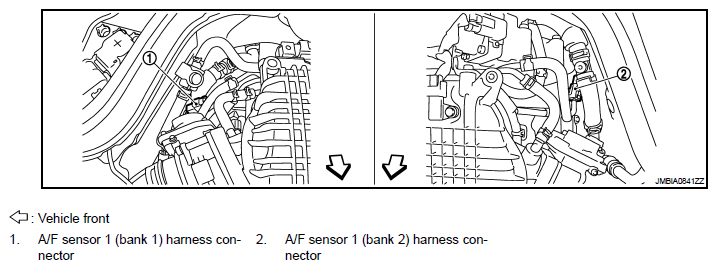

Fig 7: Identifying VVEL System Component Parts Location (7 Of 22)

G06320654

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying VVEL System Component Parts Location (8 Of 22)

G06320655

Courtesy of NISSAN NORTH AMERICA, INC.

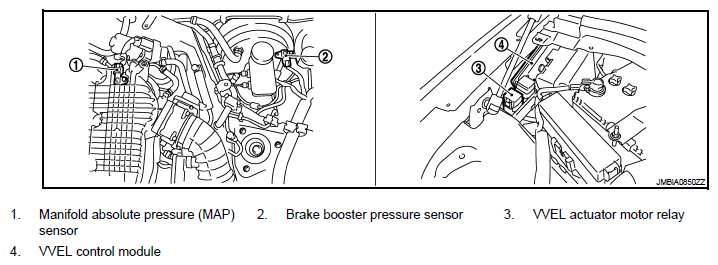

Fig 9: Identifying VVEL System Component Parts Location (9 Of 22)

G06320656

Courtesy of NISSAN NORTH AMERICA, INC.

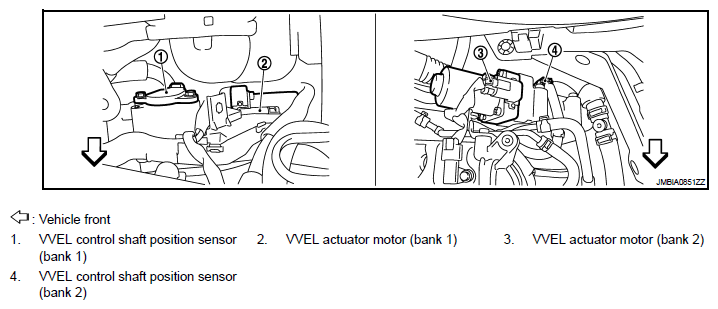

Fig 10: Identifying VVEL System Component Parts Location (10 Of 22)

G06320657

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying VVEL System Component Parts Location (11 Of 22)

G06320658

Courtesy of NISSAN NORTH AMERICA, INC.

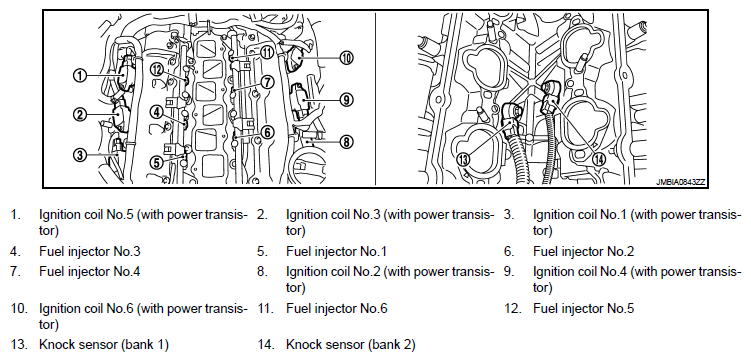

Fig 12: Identifying VVEL System Component Parts Location (12 Of 22)

G06320659

Courtesy of NISSAN NORTH AMERICA, INC.

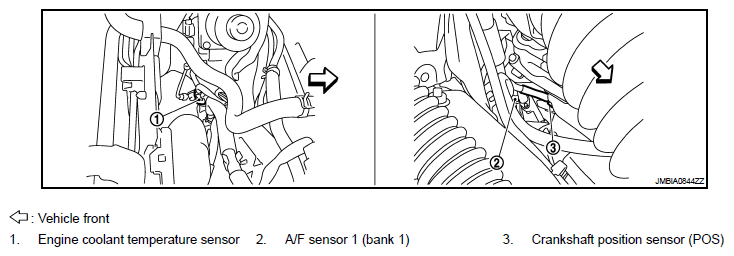

Fig 13: Identifying VVEL System Component Parts Location (13 Of 22)

G06320660

Courtesy of NISSAN NORTH AMERICA, INC.

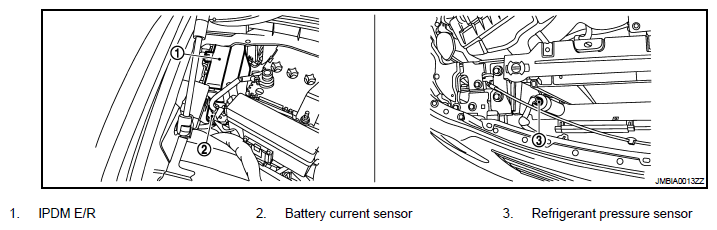

Fig 14: Identifying VVEL System Component Parts Location (14 Of 22)

G06320661

Courtesy of NISSAN NORTH AMERICA, INC.

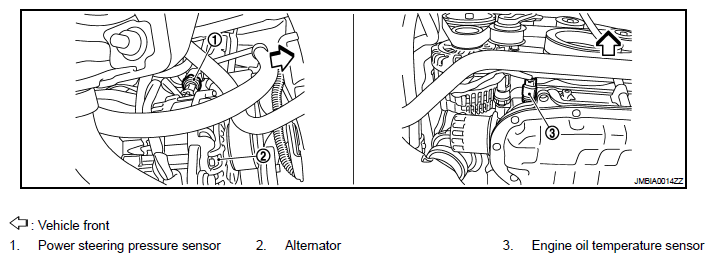

Fig 15: Identifying VVEL System Component Parts Location (15 Of 22)

G06320662

Courtesy of NISSAN NORTH AMERICA, INC.

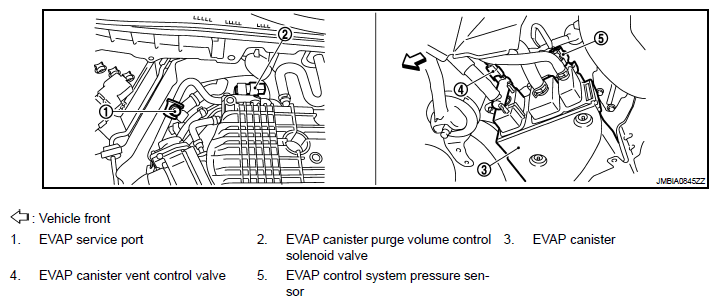

Fig 16: Identifying VVEL System Component Parts Location (16 Of 22)

G06320663

Courtesy of NISSAN NORTH AMERICA, INC.

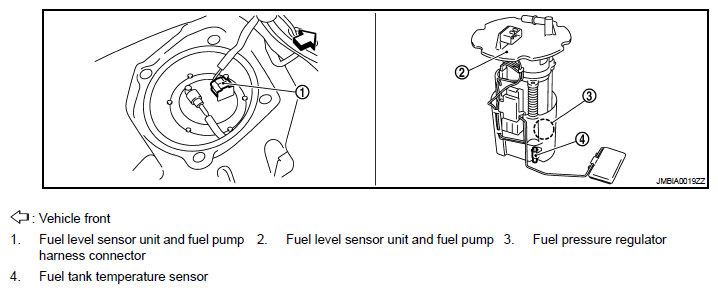

Fig 17: Identifying VVEL System Component Parts Location (17 Of 22)

G06320664

Courtesy of NISSAN NORTH AMERICA, INC.

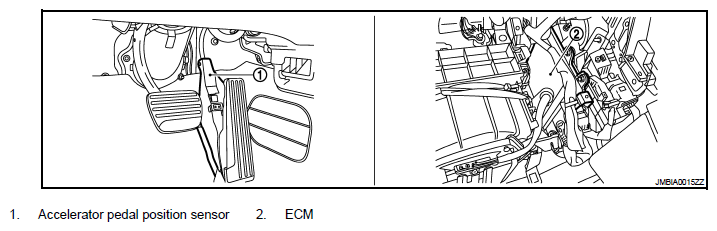

Fig 18: Identifying VVEL System Component Parts Location (18 Of 22)

G06320665

Courtesy of NISSAN NORTH AMERICA, INC.

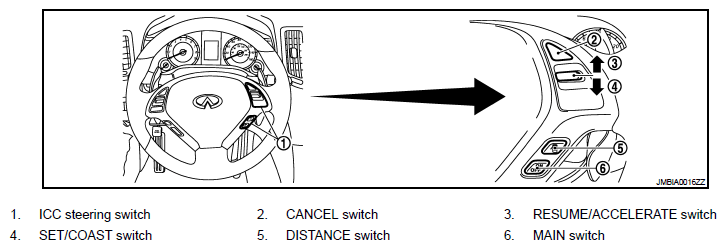

Fig 19: Identifying VVEL System Component Parts Location (19 Of 22)

G06320666

Courtesy of NISSAN NORTH AMERICA, INC.

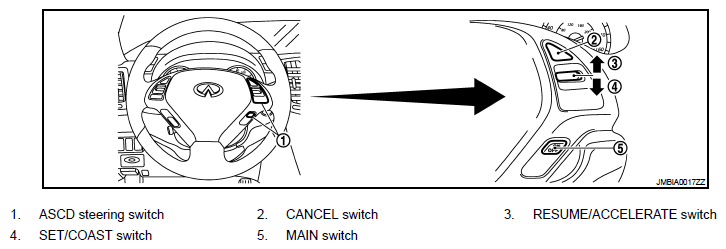

Fig 20: Identifying VVEL System Component Parts Location (20 Of 22)

G06320667

Courtesy of NISSAN NORTH AMERICA, INC.

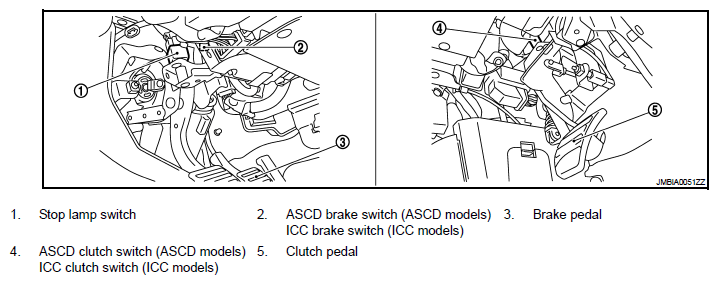

Fig 21: Identifying VVEL System Component Parts Location (21 Of 22)

G06320668

Courtesy of NISSAN NORTH AMERICA, INC.

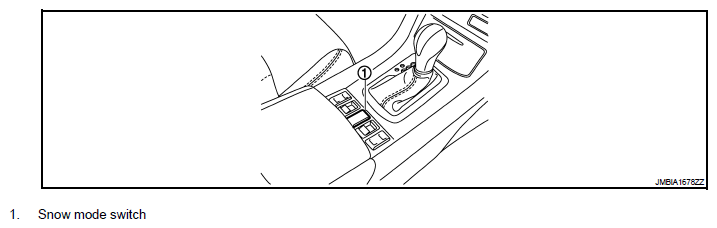

Fig 22: Identifying VVEL System Component Parts Location (22 Of 22)

G06320669

Courtesy of NISSAN NORTH AMERICA, INC.
