Wiring Diagram - IPDM E/R -

WARNING: This page is about a different variant/trim than selected.

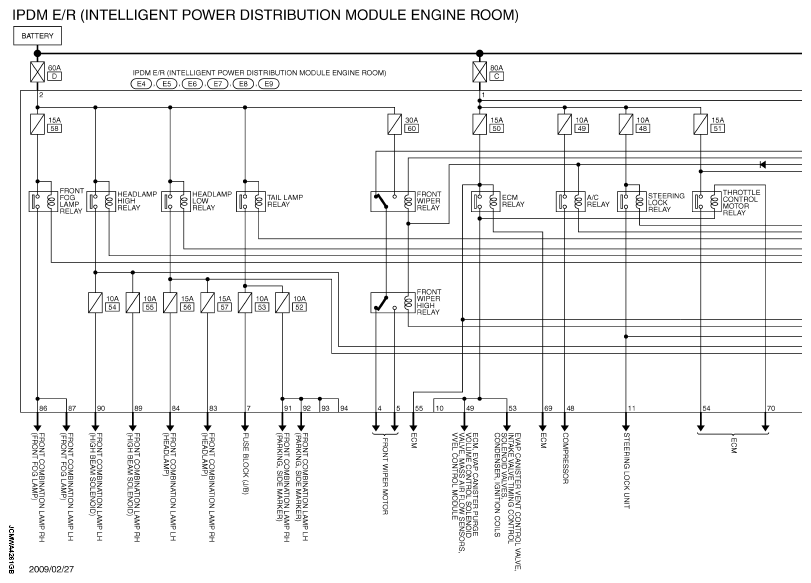

Fig 1: IPDM E/R - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

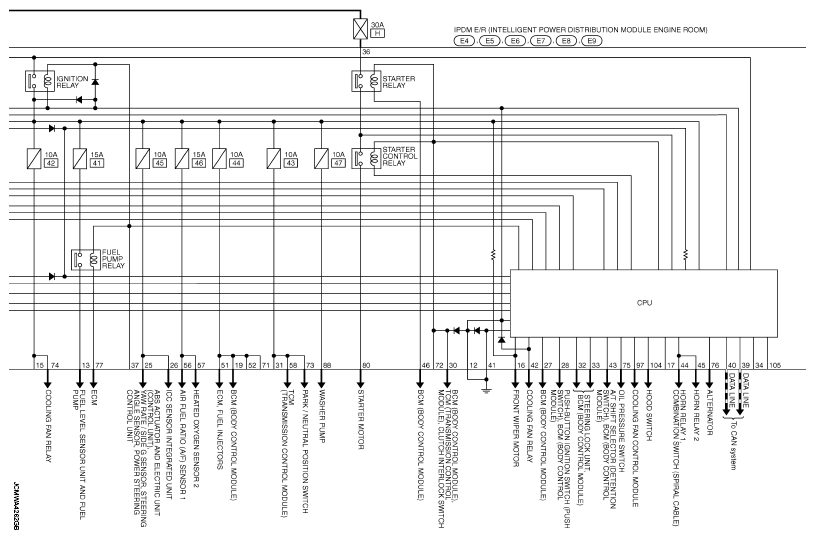

Fig 2: IPDM E/R - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

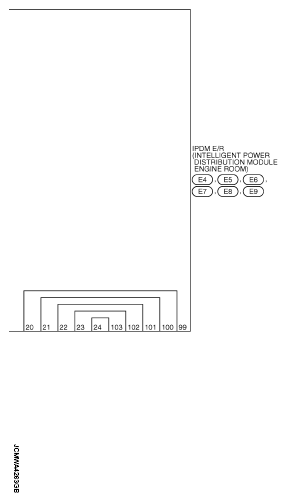

Fig 3: IPDM E/R - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

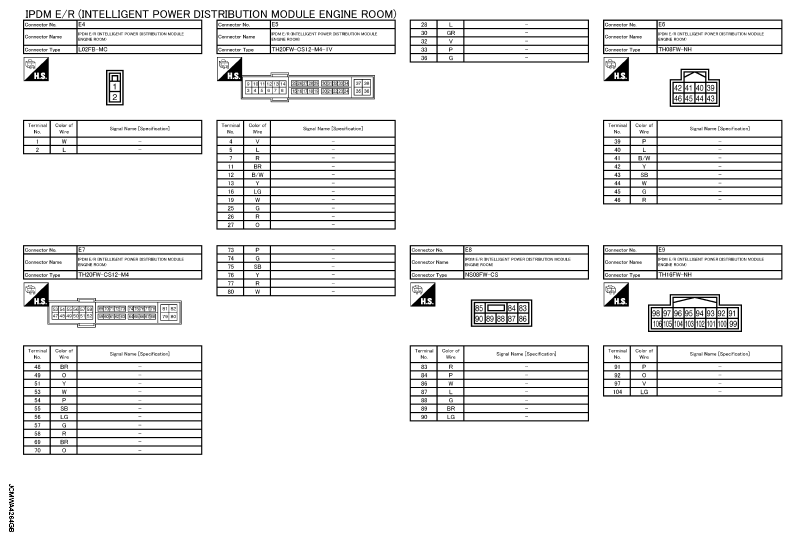

Fig 4: Identifying IPDM E/R Connector Terminal

Courtesy of NISSAN MOTOR CO., U.S.A.
