Section 32 (Security Control System -- Convertible)
>>
System Description
>>
Vehicle Security System
>>
Component Parts Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Parts Location
WARNING:
This page is about a different variant/trim than selected.

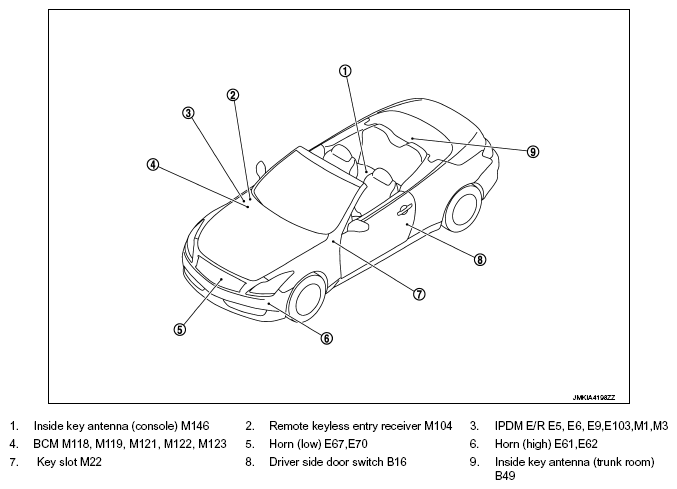

Fig 1: Identifying Vehicle Security System Component Part Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

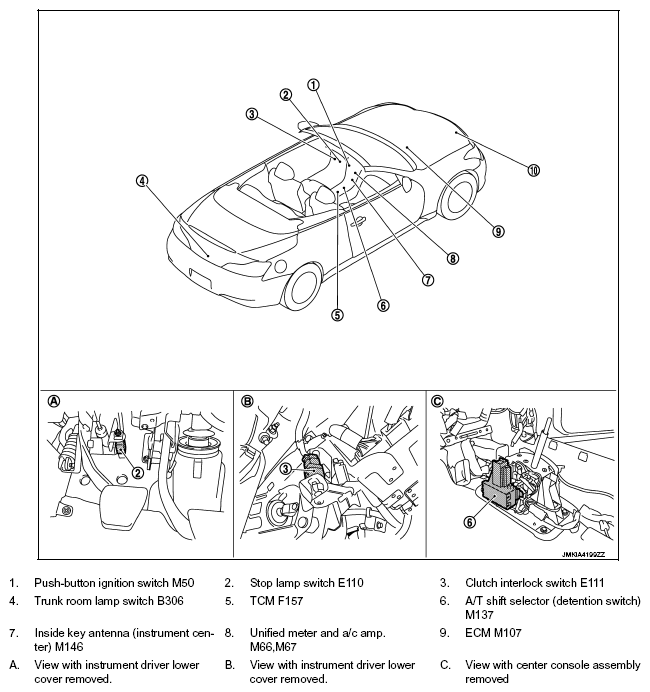

Fig 2: Identifying Vehicle Security System Component Part Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
