Service Information: Radiator: Component

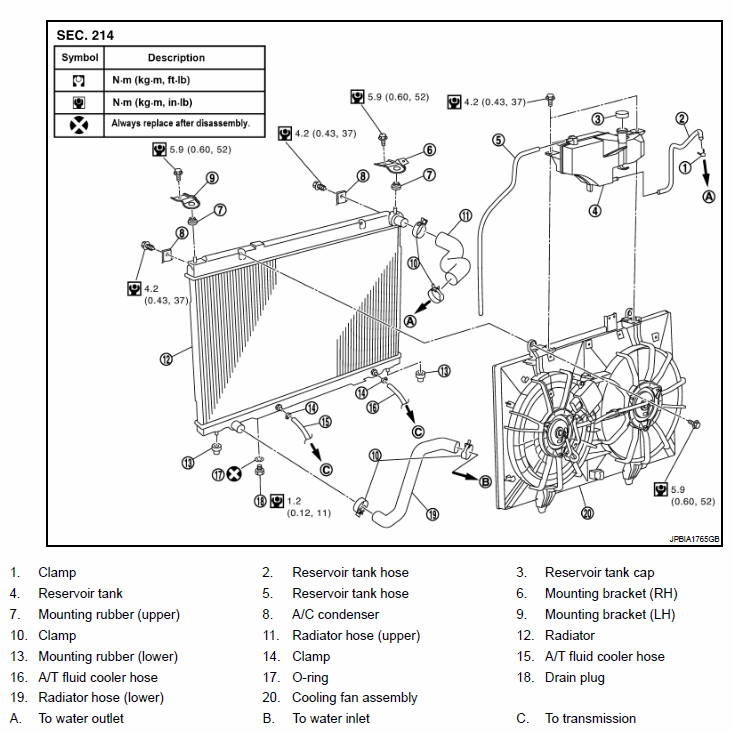

Fig 1: Exploded View Of Radiator With Torque Specifications
G06307032Courtesy of NISSAN MOTOR CO., U.S.A.
