Removal and Installation: Installation: Notes

Note the following, and install in the reverse order of removal.

• Check that no foreign objects are adhering to the installation planes of oil filter and oil cooler bracket.

2WD Models

Align cutout (B) on oil cooler (1) with protrusion (C) on oil filter bracket side, and tighten connector bolt.

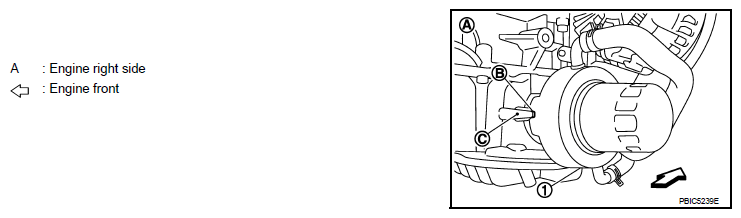

Fig 1: Aligning Cutout On Oil Cooler With Protrusion On Oil Filter Bracket Side - 2WD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

AWD Models

Align cutout (B) on oil cooler (1) with protrusion (A) on oil filter bracket side, and tighten connector bolt (3).

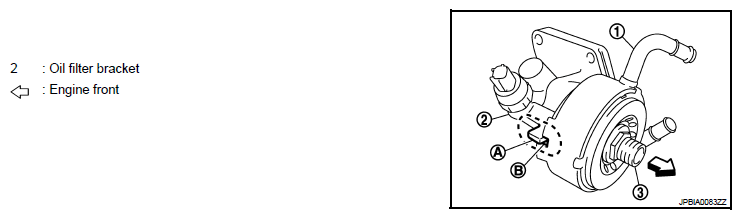

Fig 2: Aligning Cutout On Oil Cooler With Protrusion On Oil Filter Bracket Side - AWD Models
