Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (TURN SIGNAL FLASHER - MAIN BODY ECU)

Disconnect the J29 relay connector.
Disconnect the J3 ECU connector.

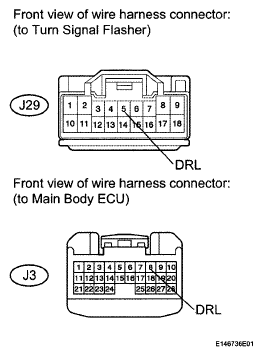

Fig 1: Identifying Turn Signal Flasher And Main Body ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard resistance

TURN SIGNAL FLASHER - MAIN BODY ECU

Tester Connection	Condition	Specified Condition
J29-S (DRL) - J3-8 (DRL)	Always	Below 1 Ω
J29-5 (DRL) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK MAIN BODY ECU

Disconnect the J3 ECU connector.

Fig 2: Identifying Main Body ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value(s) in the table below.

Standard voltage

MAIN BODY ECU

Tester Connection	Switch Condition	Specified Condition
J3-8 (DRL) - Body ground	Ignition switch ON	11 to 14 V
J3-8 (DRL) - Body ground	Ignition switch OFF	Below 1 V

NG: REPLACE MAIN BODY ECU

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
