Stop Light Switch: Inspection

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STOP LIGHT SWITCH ASSEMBLY

Measure the resistance according to the value(s) in the table below.

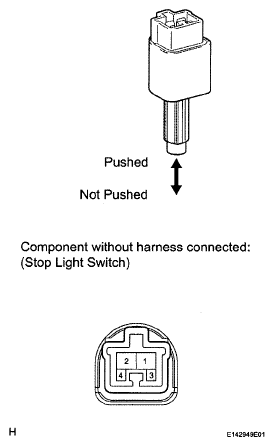

Fig 1: Identifying Stop Light Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

STOP LIGHT SWITCH ASSEMBLY

Tester Connection	Switch Condition	Specified Condition
1 - 2	Pushed	10 kΩ or higher
1 - 2	Not pushed	Below 1 Ω
3 - 4	Pushed	Below 1 Ω
3 - 4	Not pushed	10 kΩ or higher

If the result is not as specified, replace the switch assembly.
