Microphone Amplifier: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL MICROPHONE AMPLIFIER ASSEMBLY
    1. Attach the 2 claws and clip to install the microphone.

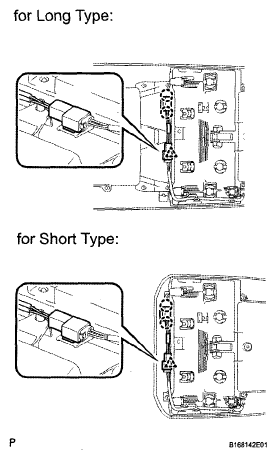

      2. Fig 1: Identifying Microphone Amplifier Assembly Claws And Clip
      G05156535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL ROOF CONSOLE BOX ASSEMBLY
    1. Install the roof console box (see INSTALLATION ).
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
