Removal and Installation: Components

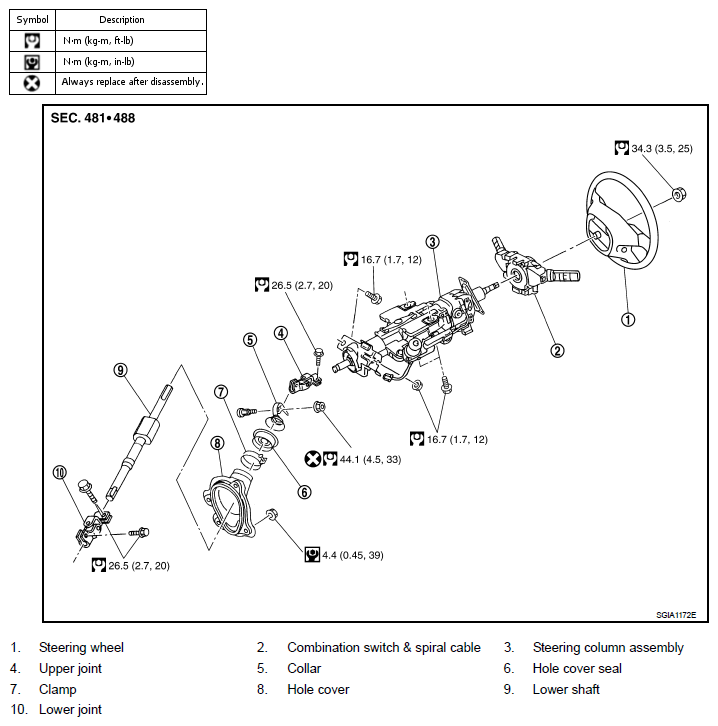

Fig 1: Steering Column Replacement Components With Torque Specifications
G06310359Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT ", for the symbols in the figure.

CAUTION:
  • Do not give axial impact to steering column assembly during removal and installation.
  • Do not move steering gear assembly when removing steering column assembly.
