Control Device Components (AWD Models)

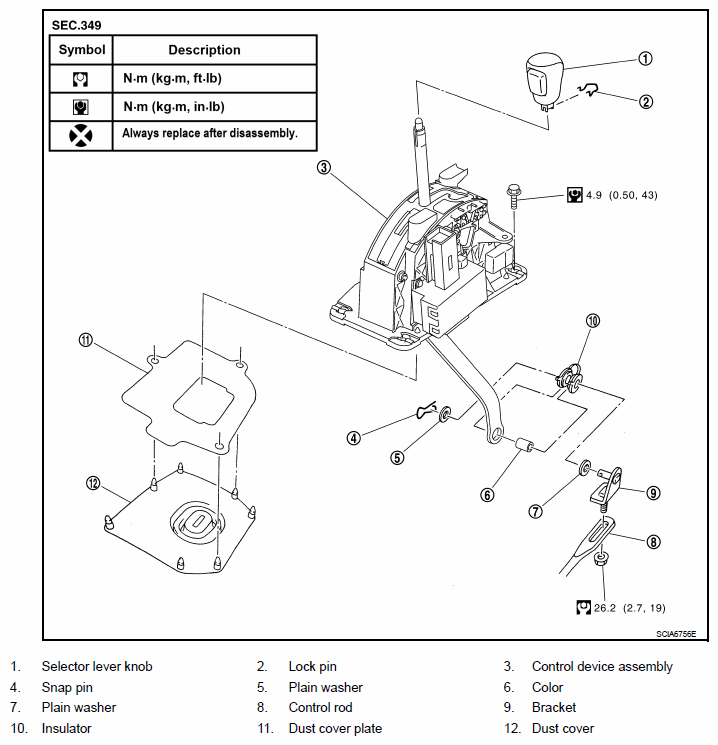

Fig 1: Identifying Shift Control Device Components (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to General Information to make sure icons (symbol marks) in the figure. Refer to "COMPONENT ".
