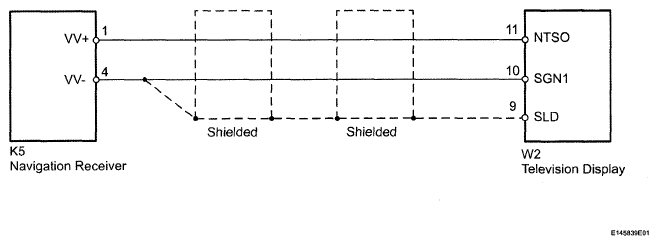

Display Signal Circuit between Television Display Assembly and Navigation Receiver Assembly: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
