CAN Communication Unit: Schematic

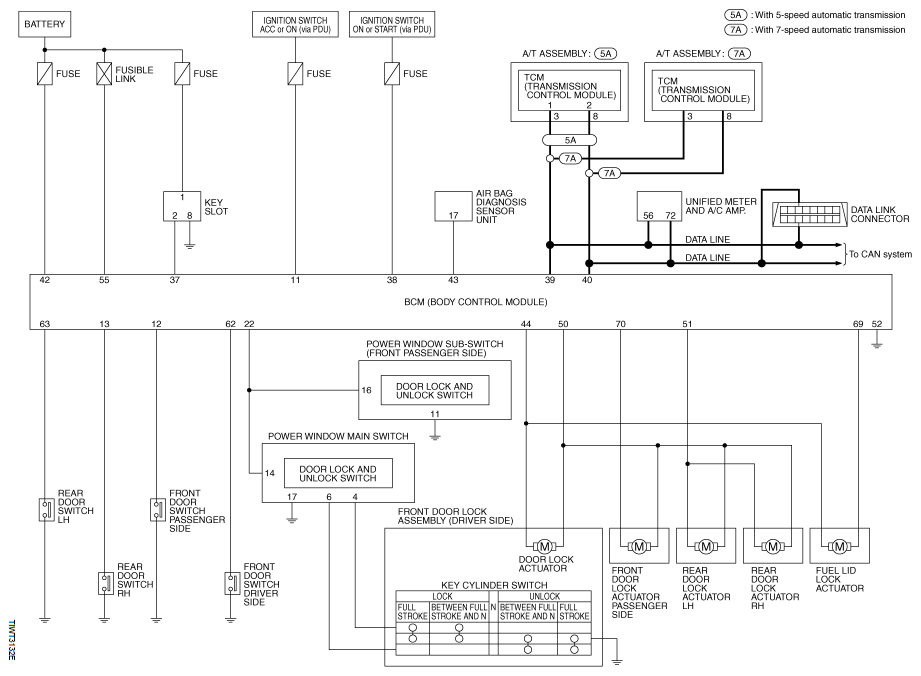

Fig 1: CAN Communication Schematic

G06308858

Courtesy of NISSAN MOTOR CO., U.S.A.
