Exploded View

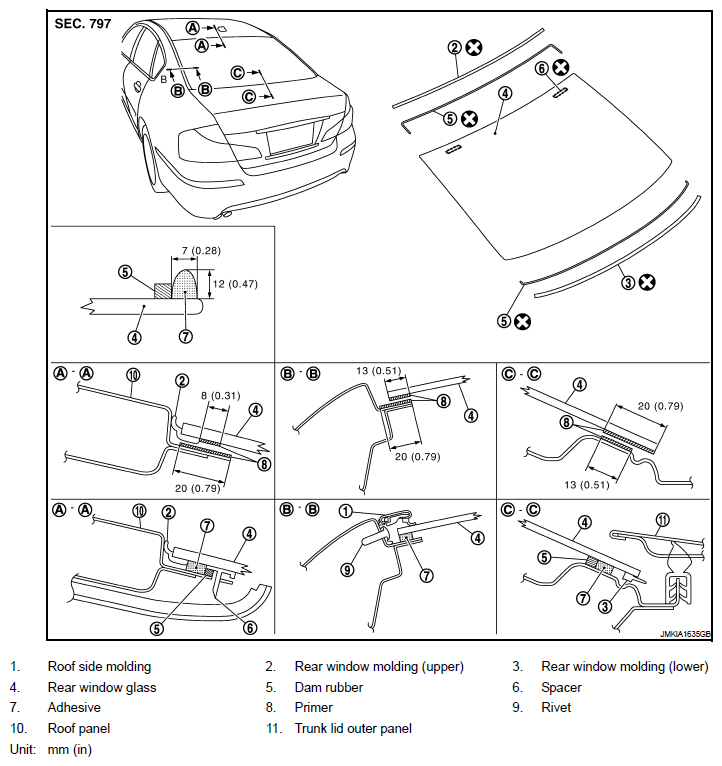

Fig 1: Identifying Rear Window Glass Adhesive Dimensions
G06307886Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT " for symbols in the figure.
