Exploded View

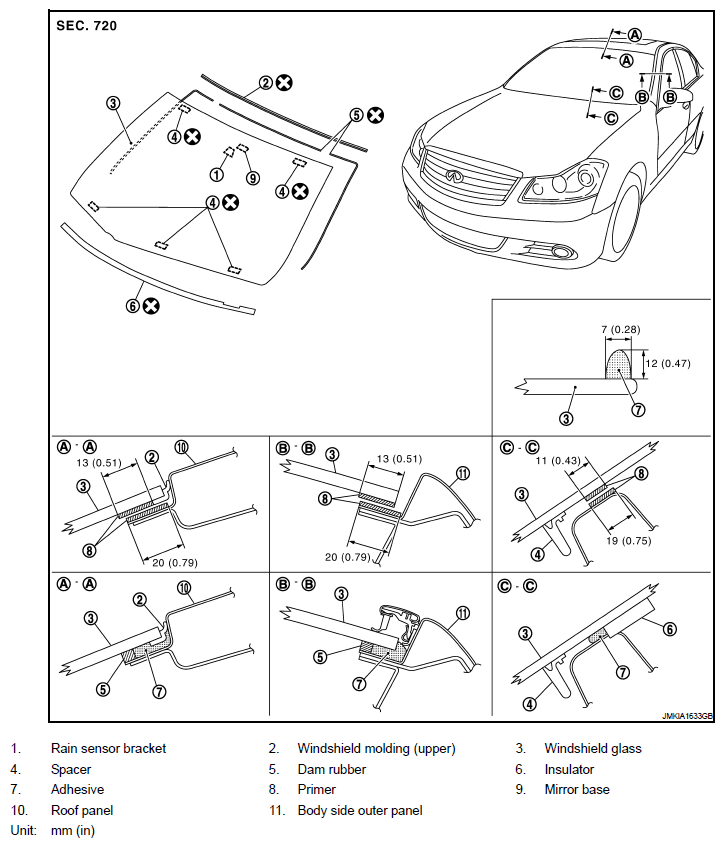

Fig 1: Identifying Windshield Glass Adjustment
G06307813Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENT for symbols in the figure.
