Trouble Diagnosis: Schematic

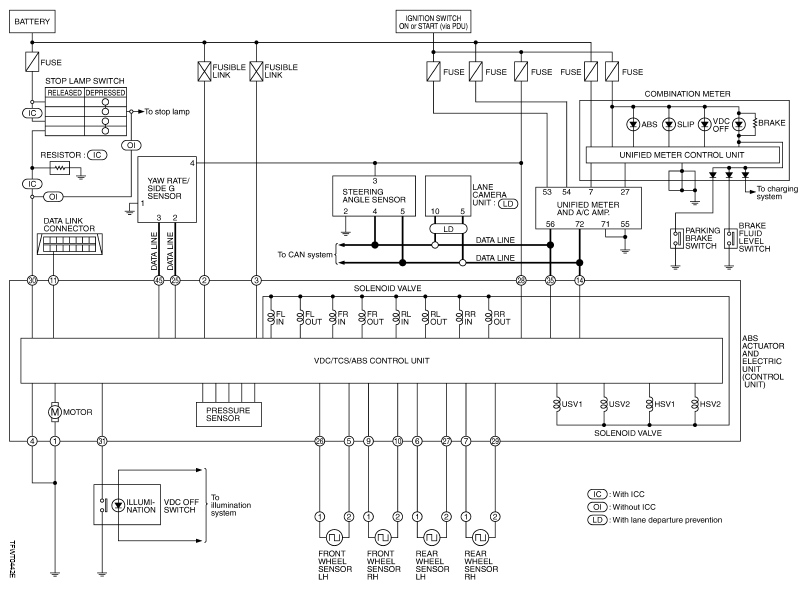

Fig 1: ABS Actuator And Electric Unit - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
