Components (VQ35DE)

WARNING: This page is about a different car, the 2008 Infiniti M45 and 2008 Infiniti M35. However, it is still accessible from the selected car via links, so may be relevant.

Refer to COMPONENTS .

Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

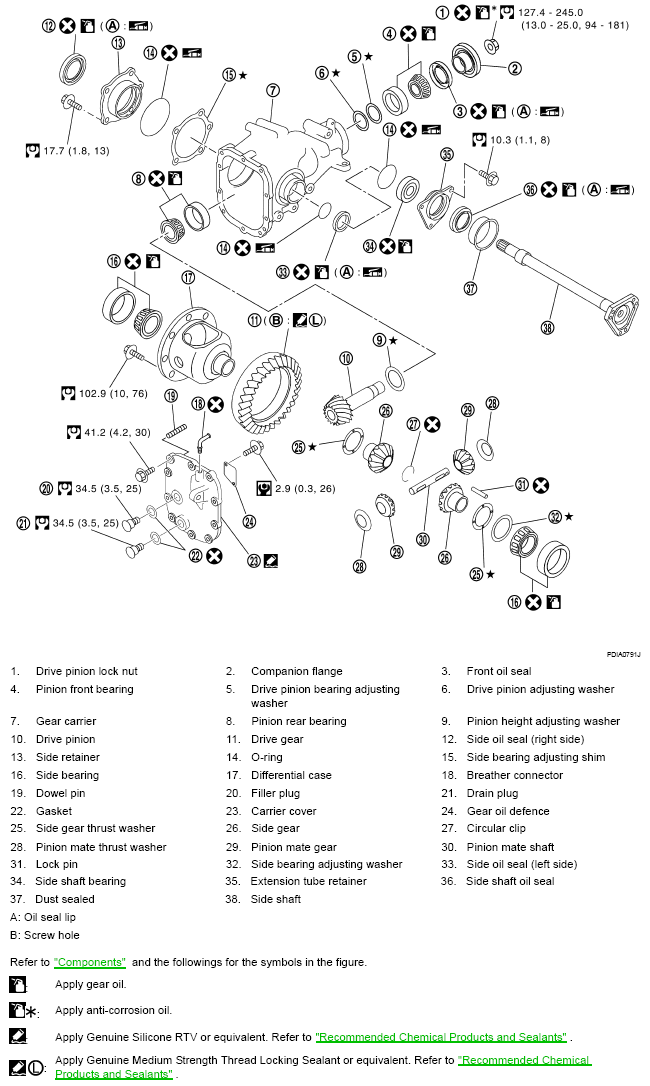

Fig 1: Exploded View Of Differential Components With Torque Specifications
G05211420Courtesy of NISSAN MOTOR CO., U.S.A.
