Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When replacing the VSC actuator assembly, perform initialization of linear solenoid valve calibration (See CALIBRATION ).
for 1GR-FE:
If the ECM has been replaced, it is necessary to register the ECU (See REGISTRATION ).
for 2UZ-FE:
If the ECM has been replaced, it is necessary to register the ECU (See REGISTRATION ).
for 3UR-FE:
If the ECM has been replaced, it is necessary to register the ECU (See REGISTRATION ).

INSPECT DLC3 (TC AND CG TERMINAL)

Measure the voltage according to the value (s) in the table below.

Standard Voltage

TESTER CONNECTION SPECIFIED CONDITION TABLE

Tester Connection	Switch Condition	Specified Condition
J17-13 (TC) - Body ground	Ignition switch ON	11 to 14 V

Measure the resistance according to the value (s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

Tester Connection	Condition	Specified Condition
J17-4 (CG) - Body ground	Always	Below 1 Ω

Fig 1: Identifying DLC3 Connector Terminal J17 (TC And CG Terminal)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 3

OK: Go To Next Step

CHECK CAN COMMUNICATION SYSTEM

Check if a CAN communication DTC is output (See DIAGNOSTIC TROUBLE CODE TABLE ).

Result

RESULT TABLE

Result	Proceed to
DTC is not output	A
DTC is output	B

B: GO TO CAN COMMUNICATION SYSTEM (See HOW TO PROCEED WITH TROUBLESHOOTING )

A: Go To Next Step

CHECK HARNESS AND CONNECTOR (DLC3 - ECM)

Disconnect the A24 ECU connector.

Measure the resistance according to the value (s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

Tester Connection	Condition	Specified Condition
J17-13 (TC) - A24-16 (TC)	Always	Below 1 Ω
J17-13 (TC) - Body ground	Always	10 kΩ or higher

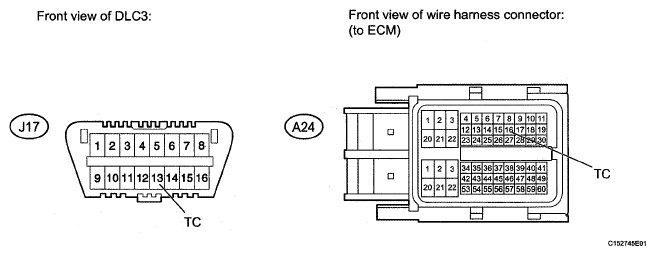

Fig 2: Identifying J17 DLC3 And A24 ECM Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step

CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)

Measure the resistance according to the value (s) in the table below.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION TABLE

Tester Connection	Condition	Specified Condition
J17-4 (CG) - Body ground	Always	Below 1 Ω

Fig 3: Identifying DLC3 Connector Terminal

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go To Next Step

CHECK ECM (DLC3 INPUT)

Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040

Check if the ABS warning light is blinking.

Result

RESULT TABLE

Result	Proceed to
ABS warning light is blinking	A
ABS warning light is not blinking (for 1GR-FE)	B
ABS warning light is not blinking (for 2UZ-FE)	C
ABS warning light is not blinking (for 3UR-FE)	D

Fig 4: Identifying DLC3 Connector Terminal J17 (TC And CG Terminal)

B: REPLACE ECM (See REMOVAL )

C: REPLACE ECM (See REMOVAL )

D: REPLACE ECM (See REMOVAL )

A: REPLACE VSC ACTUATOR ASSEMBLY (See REMOVAL )
